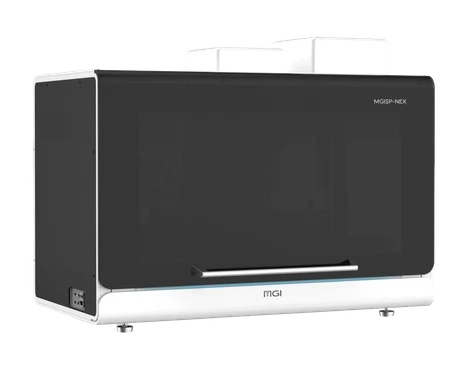

Automated Nucleic Acid Extraction System: MGISP-NEX
The MGISP-NEX is a versatile automated nucleic acid extractor that combines an independent 8-channel pipetting module with a flexible magnetic rod extraction system. Interchangeable 24-head and 96-head magnetic rod configurations allow the extraction capacity to be adapted to different sample volumes and throughput needs.
Manufacturer: MGI — Latvia
Overview
The MGISP-NEX is a versatile automated nucleic acid extractor that combines an independent 8-channel pipetting module with a flexible magnetic rod extraction system. Interchangeable 24-head and 96-head magnetic rod configurations allow the extraction capacity to be adapted to different sample volumes and throughput needs. The 8-channel pipetting module handles a volume range of 1 µL to 1000 µL for precise liquid transfer, minimizing manual intervention and enhancing workflow efficiency. An integrated UV disinfection system with a radiation dose exceeding 100,000 µW·s/cm² and a HEPA filtration system rated at 99.99% at 0.3 µm maintain a contamination-controlled environment. Designed to enhance next-generation sequencing workflows, the MGISP-NEX delivers accuracy, reliability, and flexible configuration for laboratories with varying sample loads.
Flexible Pipetting
An independent 8-channel pipetting module performs precise liquid transfers across a range of 1 µL to 1000 µL, accommodating various sample types and volumes. This reduces manual intervention and enhances workflow efficiency and accuracy in nucleic acid extraction.
Efficient, Interchangeable Extraction
The MGISP-NEX offers two interchangeable magnetic rod configurations: a 24-head option covering a processing volume of 50 µL to 5000 µL, and a 96-head option covering 20 µL to 1000 µL. This lets laboratories match extraction capacity to sample volume and throughput requirements.
Contamination Control
An integrated UV lamp delivers a radiation dose greater than 100,000 µW·s/cm², and a HEPA filtration system rated at 99.99% efficiency at 0.3 µm protects the work area from cross-contamination. These features support reliable, repeatable extraction results across runs.
Precision and Automation
A robotic arm delivers positioning accuracy of ±0.1 mm, supporting reliable, repeatable transfers between the pipetting and extraction modules. High automation streamlines the overall workflow, reducing manual handling and supporting next-generation sequencing sample preparation.
Common Specifications
| Specification | MGISP-NEX |
|---|---|
| Sample Capacity (24-head) | 1–24 samples |
| Sample Capacity (96-head) | 1–96 samples |
| Processing Volume (24-head) | 50 µL–5000 µL |
| Processing Volume (96-head) | 20 µL–1000 µL |
| Pipette Range | 1 µL–1000 µL |
| Robot Arm Positioning Accuracy | ±0.1 mm |
| UV Lamp Radiation Dose | >100,000 µW·s/cm² |
| HEPA Filtration | 99.99% at 0.3 µm |
| Power | 200 V–240 V, 50/60 Hz, 2350 W; Rated Power 1600 VA |
| Dimensions (W×H×D) | 1410 mm × 799 mm × 970 mm (without HEPA module) |
| Net Weight | ~232 kg (511 lb, without carriers) |
| Relative Humidity | 20% RH–80% RH |
| Atmospheric Pressure | 80 kPa–106 kPa |
