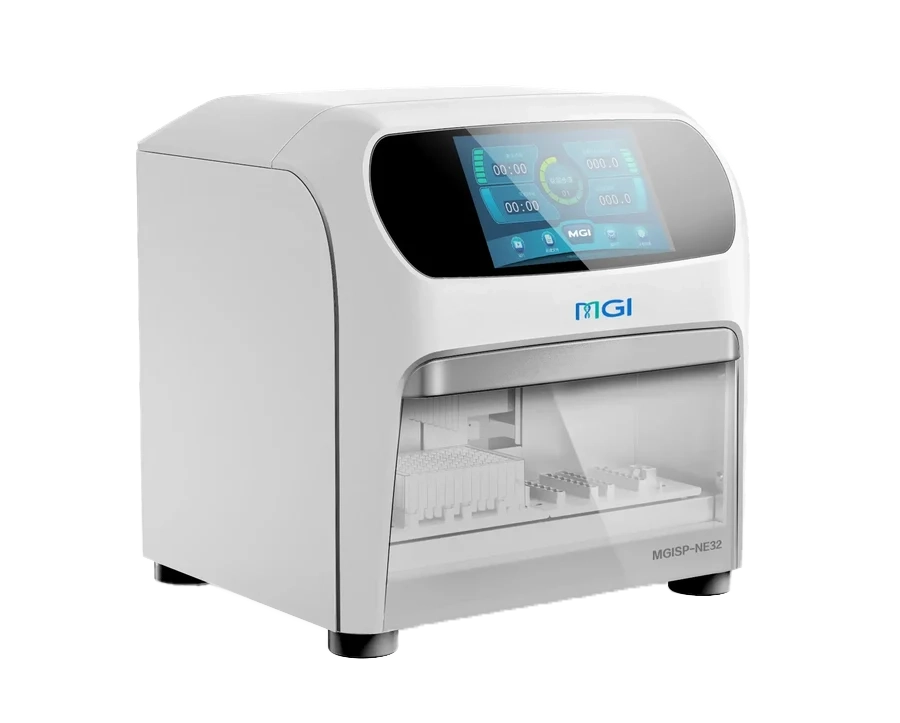

Automated Nucleic Acid Extraction System: MGISP-NE32

Overview

The MGISP-NE32 is an automated nucleic acid extractor that uses magnetic rod technology to purify nucleic acids from up to 32 samples in about 10 minutes. Paired with its dedicated extraction kit, the system can also process a 16-sample batch, giving laboratories flexibility between two throughput levels. An adjustable mixing module with multiple modes and speeds is compatible with a wide range of magnetic particles and reagents, supporting diverse sample types. Safety features including a UV lamp, a 96-well prepacked plate, and disposable tips minimize contact between samples and prevent cross-contamination. The system is well suited to downstream applications such as PCR, RT-PCR, and sequencing.

Fast, Flexible Extraction

The MGISP-NE32 extracts and purifies nucleic acids from up to 32 samples, or 16 samples using its dedicated kit, in approximately 10 minutes, enhancing laboratory throughput. Its adjustable mixing module supports multiple modes and speed settings, ensuring compatibility with a wide range of magnetic particles and reagents.

Contamination Control

A UV lamp, 96-well prepacked plate, and disposable tips minimize sample contact and prevent cross-contamination between runs. These safety features make the system suitable for sensitive downstream applications such as PCR, RT-PCR, and sequencing.

Precise Temperature and Particle Handling

The lysis and elution wells can be heated from 5°C above ambient temperature up to 120°C, with a temperature precision of ±1°C. Magnetic particle collection efficiency reaches at least 98%, with well-to-well variation of less than 3%, ensuring consistent recovery across the plate.

Operation and Control

The MGISP-NE32 is operated through an 8-inch built-in touch screen that allows users to create, edit, and delete extraction programs. This straightforward interface supports repeatable, well-documented protocols for routine extraction work.

Common Specifications
