BZ/BY/BX Series
The BZ/BY/BX Series is a range of testing baths from Yamato Scientific designed to be used in combination with the BF-type Thermomate immersion constant temperature device, or with a general thermostatic test or oil bath.
Manufacturer: Yamato — Japan
Overview
The BZ/BY/BX Series is a range of testing baths from Yamato Scientific designed to be used in combination with the BF-type Thermomate immersion constant temperature device, or with a general thermostatic test or oil bath. The baths are offered in three different materials, acrylic (BX), polypropylene (BY), and stainless steel (BZ), each available in multiple internal capacities. The BZ (stainless steel) models support the widest usable temperature range, from room temperature to 200°C, while the BX (acrylic) models are limited to 50°C for water only and the BY (polypropylene) models cover -5°C to 80°C.
Three Material Options

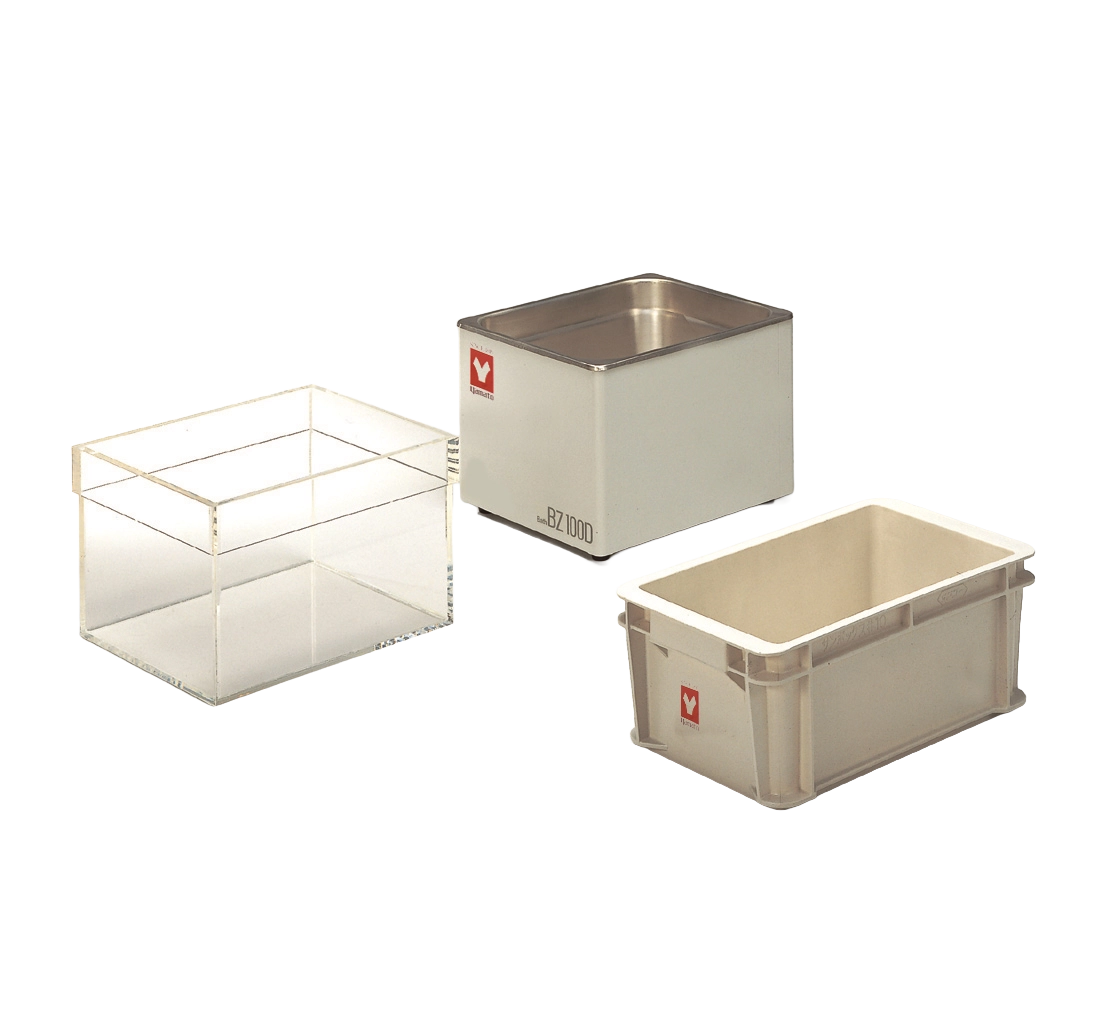

The testing bath is available in three different materials and capacities: acrylic, polypropylene, and stainless steel.
Use with Thermomate BF Type
The bath is suitable for the intended use simply by setting it up with the Thermomate BF type temperature controller.
Compatible with Other Thermostats
It can be used in combination with a general thermostatic test, oil bath, or other thermostat of the BF type.
Model Comparison
| Specification | BX100 | BX100D | BX200 | BY100 | BY200 | BZ100 | BZ100D | BZ200 | BZ300 |
|---|---|---|---|---|---|---|---|---|---|
| Usable temperature | ≦50°C (for water only) | ≦50°C (for water only) | ≦50°C (for water only) | -5 to +80°C | -5 to +80°C | Room temperature to +200°C | Room temperature to +200°C | Room temperature to +200°C | Room temperature to +200°C |
| Internal capacity | 12L | 13L | 20L | 8L | 18L | 12L | 13L | 20L | 27L |
| Material | Acrylic | Acrylic | Acrylic | Polypropylene | Polypropylene | Stainless Steel Plate | Stainless Steel Plate | Stainless Steel Plate | Stainless Steel Plate |
| Internal dimensions (W×D×H mm) | 230×390×150mm | 240×300×200mm | 300×500×150mm | 327×185×156mm | 300×455×160mm | 230×390×150mm | 240×300×200mm | 300×500×150mm | 300×500×200mm |
| Weight | 2kg | 2kg | 3kg | 1kg | 1kg | 2kg | 2kg | 2kg | 2kg |
