BT Series

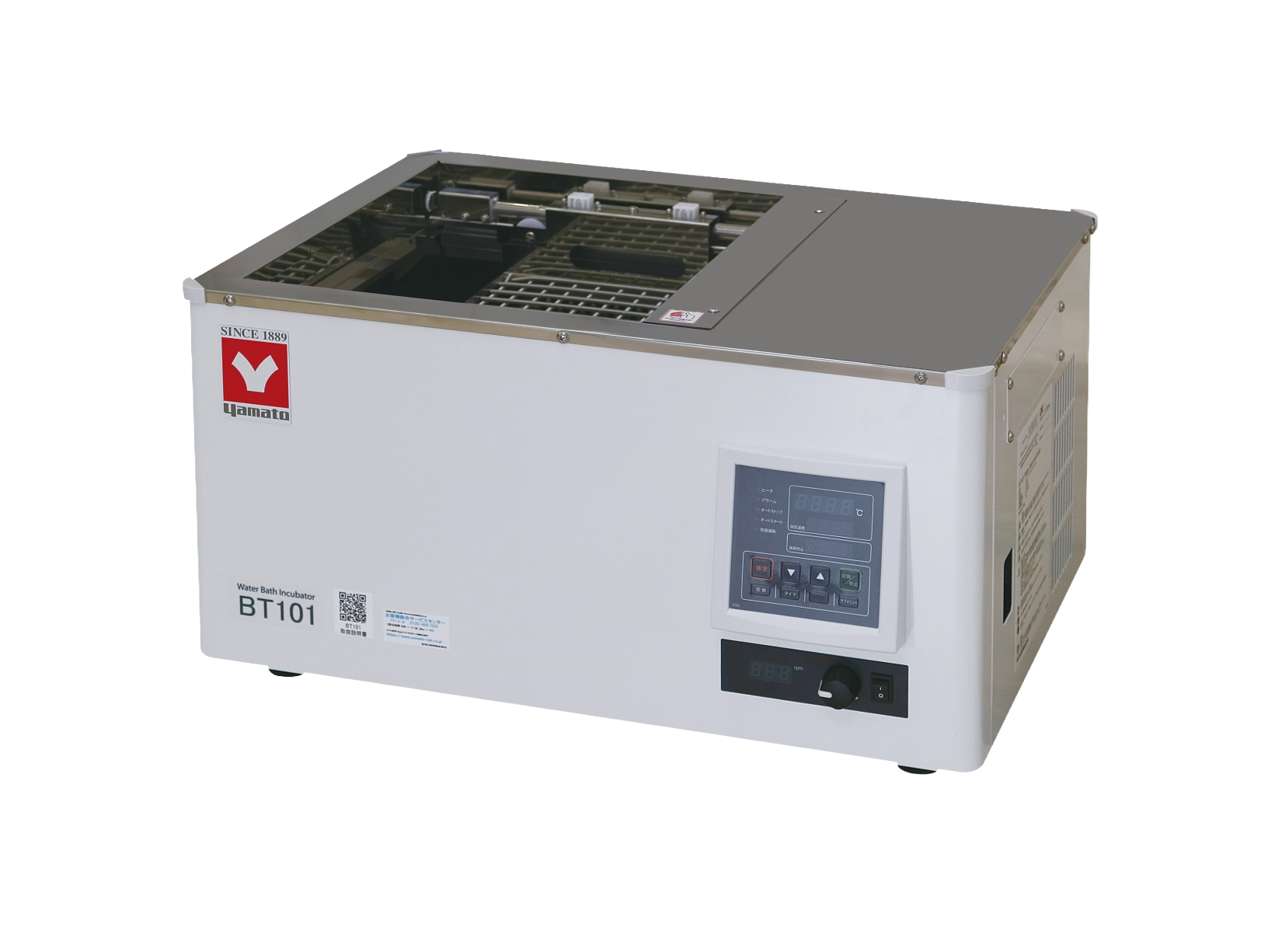

The BT Series is a shaking water bath incubator from Yamato Scientific that combines an easy-to-use constant temperature water tank with an integrated shaking mechanism, suitable for culturing, reaction, and lysis applications.
Manufacturer: Yamato — Japan
Overview
The BT Series is a shaking water bath incubator from Yamato Scientific that combines an easy-to-use constant temperature water tank with an integrated shaking mechanism, suitable for culturing, reaction, and lysis applications. A high temperature distribution of ±0.1°C is achieved in the tank due to the stirring function of the pump, so the bath can also be used as an accurate water tank when shaking is not needed. The shaking width can be changed from 10 to 40mm, and shaking speed is step-less variable from 20 to 160 rpm. It is equipped with enhanced safety functions, including automatic overheat prevention, temperature sensor abnormality detection, and an overcurrent leakage breaker.
Excellent Temperature Distribution
A high temperature distribution of ±0.1°C can be obtained in the tank due to the stirring function of the pump, allowing accurate use as a water tank even when shaking is not used.
Variable Shaking
The shaking width can be changed from 10 to 40mm, and the number of shakes is step-less variable from 20 to 160 rpm.
Enhanced Safety Functions
The bath is equipped with safety functions such as automatic overheat prevention, temperature sensor abnormality detection, and an overcurrent leakage breaker as standard equipment.
Varieties of Options
A top lid enhances heat retention and prevents water evaporation for long-term use, and options for external communication, temperature output, time-up output, and external alarm can be selected.
Common Specifications
| Specification | BT Series |
|---|---|
| Method | Reciprocating shaking system, stirring by pump |
| Operating temp. range | Room temp. +5°C to 80°C (when top cover is installed) |
| Temperature control accuracy | ±0.02°C to 0.08°C |
| Temperature distribution accuracy | ±0.1°C |
| Temperature rising time | Approx. 95 min. |
| Shaking frequency | 20 to 160 times/min |
| Shaking width | 10 to 40mm (adjustable) |
| Material (interior) | Stainless steel |
| Temp. controller | PID control by microprocessor |
| Temp. sensor | Platinum resistance temperature detector Pt100Ω (for temperature control) / K thermocouple (for overheating inhibitor) |
| Temp. setting/display method | Digital setting |
| Overheat protector | ON/OFF control by microprocessor |
| Overheat protect setting method | Digital setting |
| Heater | Copper pipe heater (nickel plated) 1.2kW |
| Stirring system | Magnet pump 6W |
| Shaker | Gear motor 25W |
| Shaking speed setting system | Analog setting |
| Shaking speed display system | Digital display |
| Timer | 1 min. to 99 hr. 59 min., digital display, quick automatic start/stop |
| Safety countermeasures | Self-diagnosis function (heater defective, sensor defective, SSR short circuit and overheat protector), over current/short circuit breaker, heater no-load operation prevention device and overheat protector |
Model Comparison
| Specification | BT101 | BT311 |
|---|---|---|
| Internal dimensions (W×D×H mm) | 302×350×250mm | 532×350×250mm |
| External dimensions (W×D×H mm) | 579×414×325mm | 809×414×325mm |
| Power source | Single phase AC100V 14A | AC200V 14.5A |
| Weight | 27kg | 48kg |
