Atom Probe Tomography (APT)

Atom probe tomography reconstructs a specimen atom by atom, delivering three-dimensional compositional maps with near-atomic resolution and ppm-level sensitivity – the ultimate microscope for nanoscale materials research.

CAMECA — Atom Probe Tomography (APT)

Overview

In atom probe tomography, individual atoms are field-evaporated from a needle-shaped specimen and identified by time-of-flight mass spectrometry, then reconstructed into a three-dimensional map of the analyzed volume. The technique provides equal sensitivity for all elements – including light elements such as hydrogen, lithium, and boron – making it uniquely powerful for studying precipitates, grain boundaries, dopant distributions, and interfaces in metals, semiconductors, and energy materials. CAMECA is the world's leading supplier of atom probe instrumentation.

Manufacturer: CAMECA — France

Authorized distributor in Bangladesh. Factory-trained engineers available for local support.

Models

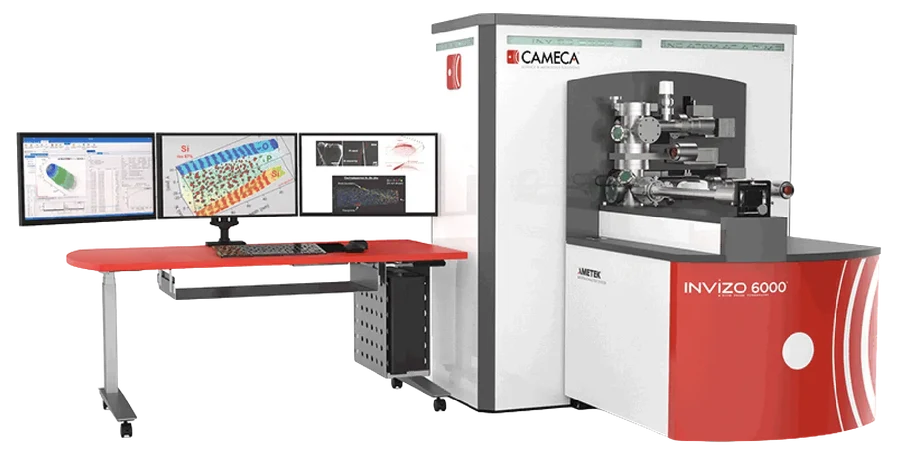

  • CAMECA 3D Atom Probe: Invizo 6000 — Atom Probe Tomography (APT)

    3D Atom Probe: Invizo 6000

    CAMECA's flagship 3D Atom Probe, with an ultra-wide field of view that captures over 90 percent of a specimen at high mass resolving power.

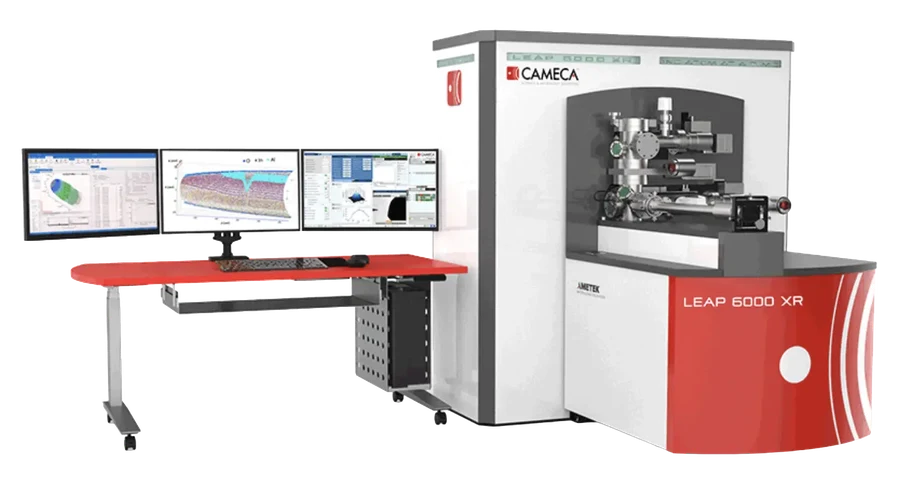

  • CAMECA Local Electrode Atom Probe: LEAP 6000 XR — Atom Probe Tomography (APT)

    Local Electrode Atom Probe: LEAP 6000 XR

    The latest Local Electrode Atom Probe, adding deep UV laser pulsing and the first simultaneous voltage-and-laser mode for lower background.

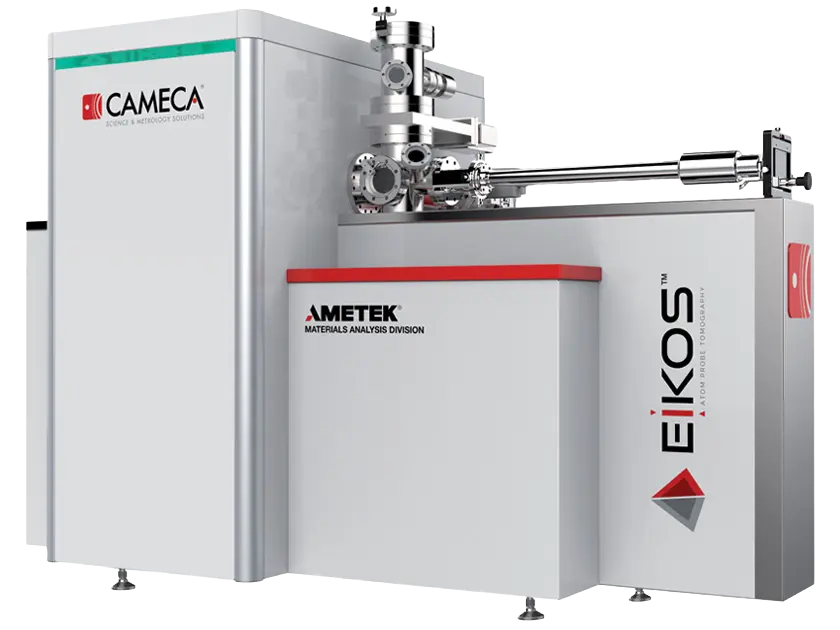

  • CAMECA Compact Atom Probe: EIKOS-UV — Atom Probe Tomography (APT)

    Compact Atom Probe: EIKOS-UV

    A compact atom probe bringing 3D atomic-scale analysis within reach of academic and industrial laboratories, with an optional 355 nm UV laser.

NEED MORE INFORMATION?

Our applications team can provide detailed specifications, application notes, and a formal quotation.
