Opto-Mechanical Components
Newport opto-mechanical components – mirror mounts, posts, rails, translation stages, and optic holders – provide the rigid, precise, repeatable positioning that every optical setup is built on.
Overview
A reliable optical setup depends on the quality of its smallest parts. Newport's opto-mechanics portfolio covers kinematic mirror mounts, posts and pedestals, rails and carriers, manual translation and rotation stages, lens and filter holders, and fiber positioners – thousands of precision-machined components engineered for stability, smooth adjustment, and long service life in research and OEM instruments.
Manufacturer: Newport — USA
Authorized distributor in Bangladesh. Factory-trained engineers available for local support.
Models

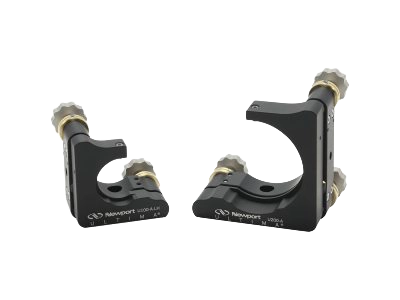

ULTIMA® Clear Edge Performance Mirror Mounts
The ULTIMA® is Newport's best overall mirror mount family, combining excellent stability, clear edge aperture, removable lockable adjusters and numerous other options.

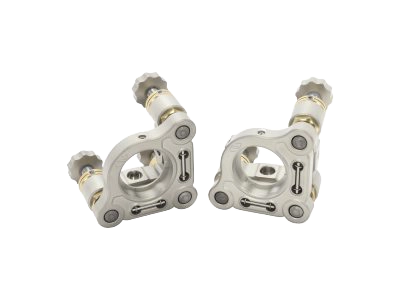

Suprema® Classic Low-Drift Mirror Mounts
The Suprema® Classic is the industry's highest performing optical mount, featuring stainless steel construction and removable, locking, 100 or 254 TPI knob adjusters.

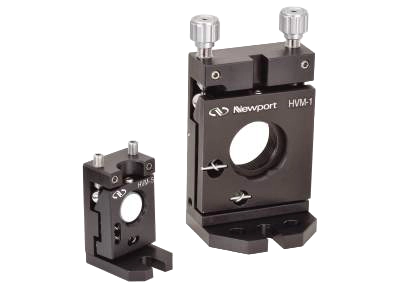

Top Adjust Lab Mounts
This design allows adjustment without blocking the optical beam and reduces the risk of laser-related injuries, making these mounts ideal for use in laser cavities.

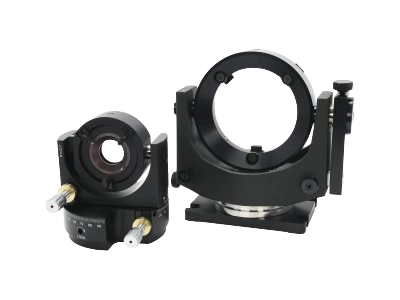

Full Rotation Range Gimbal Mirror Mounts
Our SL-A and 605 Series full range traditional gimbal mounts have unlimited angular range in pitch and yaw, allowing them to steer a beam in any direction desired.

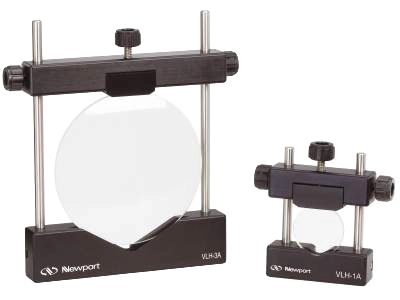

V-Groove Registered Variable Size Lens Mounts
Universal lens mounts provide a single holder for many different sizes of lenses in a convenient one-size-fits-all design, accommodating optics from 6.3 to 91.4 mm.

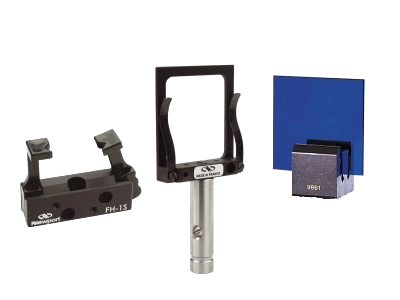

Drop-in Spring Clamp Optical Filter Mounts
The mounts hold individual filters firmly in place, accommodate round or square filters, and offer a wide variety of post mounting options.

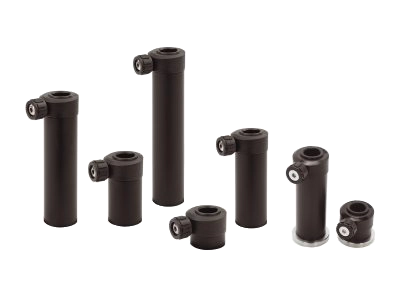

VPH No Slip Optical Post Holders
The VPH Series Optical Post Holders provide continuous vertical control for components mounted with 0.5 in.

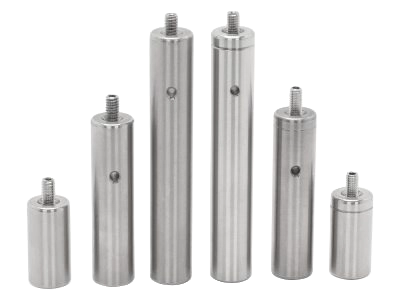

0.5 in. Diameter Stainless Steel Optical Mounting Posts
SP Series posts can be connected using thread adapters, contain cross-drilled holes to aid in tightening and loosening posts, and can be inserted into 0.5 in.

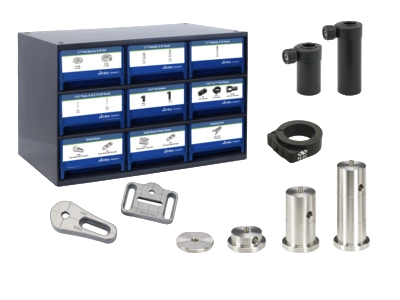

Optical Posts and Bases Kits
The OMK33 Optical Posts and Bases Kit offers an array of bases, post clamps, posts, pillar posts, clamping forks and other essentials totaling 49 products.

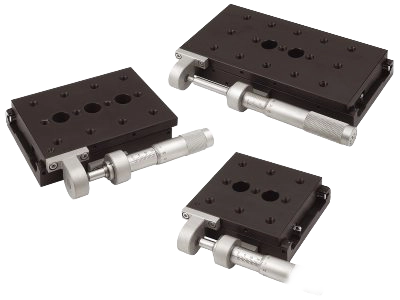

Extended Range, Ball Bearing Aluminum Linear Stages
Long-range, ball bearing, linear translation stages are a staple in any optical laboratory, offering smooth lockable translation over extra-long travel ranges.

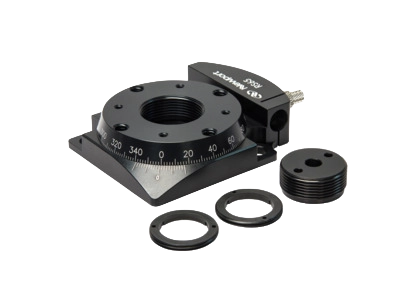

RS Low-Profile Rotation Stages
The RS Low-Profile rotation stages offer smooth rotation for mounted components or 1-inch optics (0.5 in.

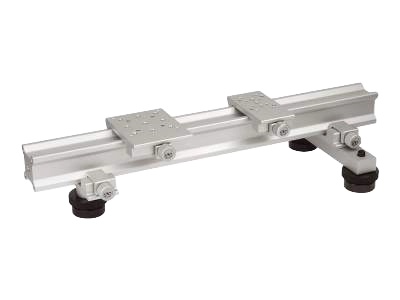

X48 Aluminum Four-Sided Optical Rail System
The unique shape of the rail also increases its longitudinal and torsional stiffness despite its versatile profile.

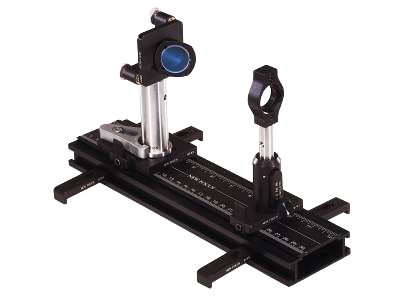

76 mm Quick-Release Optical Rail System
wide, single-rail system uses a box beam cross-section for stiffness and a single-handed fast lock and release mechanism for optical carriers.

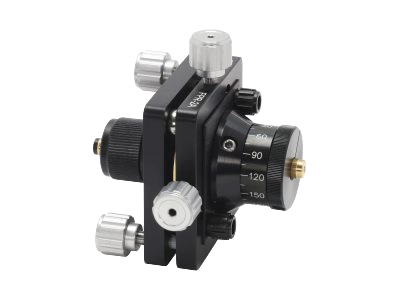

Multi-Axis Optical Fiber Positioners
Positioning is controlled with easy-to-handle knobs that lock securely with a hex key.
NEED MORE INFORMATION?
Our applications team can provide detailed specifications, application notes, and a formal quotation.
