Flow Cups & Zahn Cups

Flow cups and Zahn cups measure viscosity by timing how long a fixed volume takes to drain through a calibrated orifice — a fast, inexpensive check well suited to production and on-site quality control of paints, inks and varnishes.

Rigo — Flow Cups & Zahn Cups

Overview

Not every viscosity measurement needs a thermostatted bath. For paints, inks, varnishes and similar coatings, an efflux cup gives a usable number in seconds: the cup is filled, the orifice opened, and the drain time recorded. RIGO supplies both the dipping Zahn cup, which is lowered directly into the container, and the bench-standing flow cup to JIS K5600-2-2 and ISO 2431. Both are offered in a range of orifice sizes so the efflux time falls in a readable window for the material being checked.

Manufacturer: Rigo — Japan

Local sales, installation, and technical support in Bangladesh by trained local engineers.

Models

  • Rigo 417 Rigo's Zahn Viscosity Cup — Flow Cups & Zahn Cups

    417 Rigo's Zahn Viscosity Cup

    The Model 417 Rigo's Zahn Viscosity Cup is the simplest type of comparative viscometer used to measure the viscosity of inks, paints, lacquers, and similar materials.

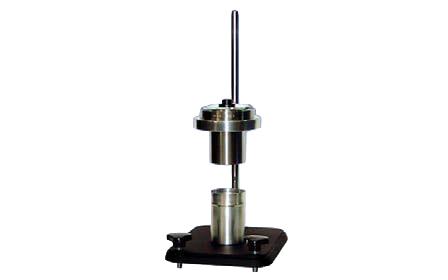

  • Rigo 421 Flow Cup — Flow Cups & Zahn Cups

    421 Flow Cup

    Bench-standing efflux cup to JIS K5600-2-2 and ISO 2431, supplied in No.3 and No.4 orifice sizes.
