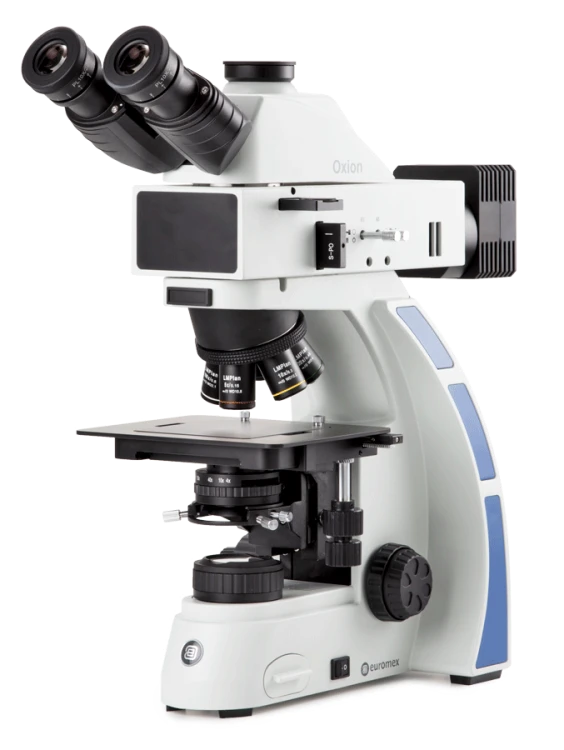

Oxion materials science Series

Overview

The microscopes of the Oxion materials science series are specifically designed for the observation of many types of materials in research laboratories of universities or professionals in industrial research centers.

Thanks to the high resolution optics and state-of-the-art components, these microscopes can be widely used for routine and fundamental applications.

Key Highlights

• Trinocular models
• HWF 10x/22 mm eyepieces
• Reversed quintuple nosepiece
• Plan M-IOS objectives
• Transmitted 3 W NeoLED illumination
• Reflected 3 W NeoLED illumination
• Polarization and analyzer filters

Specifications

EYEPIECES

HWF 10x/22 mm eyepieces. All eyepieces can be secured.

HEAD

Trinocular Siedentopf head with 30° inclined tubes. Interpupillary distance from 48 to 75 mm. Diopter ± 5 diopter adjustment on both eyepieces. A unique rotating system allows the ergonomical positioning of both tubes in an upper (431 mm) and in a lower position (397 mm).

NOSEPIECE

Reversed nosepiece for a maximum of 5 objectives on ball bearings.

OBJECTIVES (IOS - Infinity Corrected System)

Standard configurations equipped with infinity corrected DIN long working distance LWD plan M-IOS 5x/0.14, 10x/0.25, 20x/0.40 and LWD plan semi apochromatic M-IOS 50x/0.55 and 100x/0.80 objectives.

FOCUSING

• Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 28 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control

STAGE

• 180 x 145 mm stage with integrated mechanical 78 x 45 mm X-Y stage
• Is supplied with plain metal and plain glass inserts

CONDENSER (for transmitted illumination)

Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder.

TRANSMITTED ILLUMINATION

All models are supplied with 3 W adjustable NeoLED illumination with integrated 100-240 V power supply. Köhler illumination with field diaphragm.

REFLECTED EPI-ILLUMINATION

Intensity adjustable 3 W NeoLED Köhler illumination with external 110-240 V power supply. Push-pull type 90° rotatable polarizer and fixed analyzer. Built-in condenser with field and aperture iris diaphragm. Oblique lighting feature. Supplied with blue and green filter.

PACKAGE CONTENT

Supplied with power cord, dust cover, a spare fuse and user manual. All packed in a polystyrene box.
