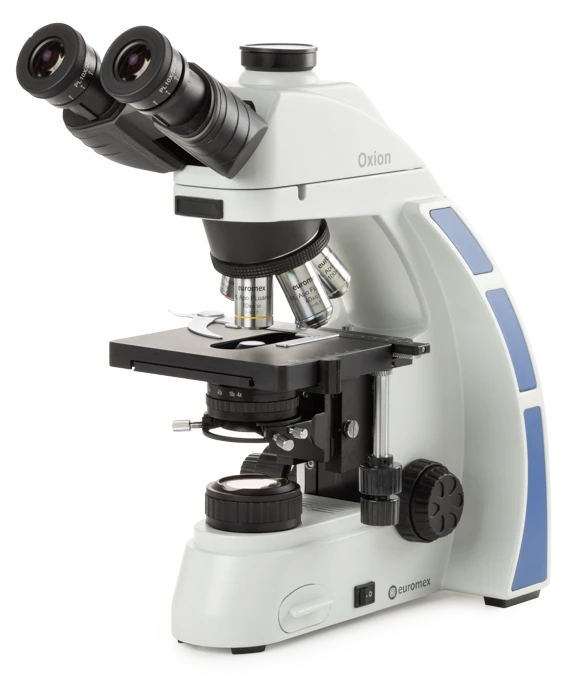

Oxion Series

Overview

The Oxion series has been designed with all kind of Life Sciences applications and great durability in mind. This resulted in a modern, robust and high level microscope for everyday use, equipped with excellent optical and mechanical components. Specific attention to production methods resulted also in an excellent price/performance ratio.

The microscopes of the Oxion series are dedicated to professionals in Life Sciences applications, laboratories of universities or research centers, but also for routine medical applications and veterinary medicine. Besides the brightfield contrast method, configurations with darkfield contrast or simple polarization can be used.

Key Highlights

• HWF 10x/22 mm eyepieces
• Bino and trino systems
• Optional tilting head
• Reversed nosepiece for 5 objectives
• Semi plan and plan IOS objectives
• 150 x 140 mm stage
• Abbe condenser
• 3 W LED illumination for brightfield applications
• Ergonomical stand and head
• 10 years warranty

Specifications

EYEPIECES

• HWF 10X/22 mm eyepieces with ± 5° diopter adjustements on both eyepieces
• All eyepieces can be secured with an Allen screw

HEAD

• Binocular and trinocular Siedentopf type heads with 30° inclined tubes
• Interpupillary distance from 50 to 75 mm
• A unique rotating system allows an ergonomical positioning of both tubes in an upper (431 mm) and in a lower position (397 mm)
• An ergonomic tilting head is also available (OX.5700-ADD)

NOSEPIECE

Reversed nosepiece for a maximum of five objectives on ball bearings.

OBJECTIVES - IOS INFINITY CORRECTED SYSTEM

• Semi plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives
• Plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives standard, optional 20x/0.40 and S60x/0.85 objectives
• Plan phase contrast S40x/0.65 and S100x/1.25 oil immersion IOS objectives
• Plan semi apochromatic Fluarex 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives standard, optional 20x/0.50 objectives

All S40x, S60x and S100x oil immersion objectives are spring loaded. All optics have an anti-reflection coating for maximum light throughput and are anti-fungus treated.

STAGE

Equipped with double slide holder.

• 150 x 140 mm stage with integrated 76 x 50 mm X-Y mechanical stage
• The Oxion can be supplied with a heating stage with PID temperature controller which can be set up to 50° Celsius (Only available for new microscopes)

CONDENSER FOR BRIGHTFIELD

• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm
• A darkfield stop in slider can be inserted in the condenser for darkfield contrast up to 400x magnification (optional)

FOCUSING

• Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 28 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• The coarse adjustments are equipped with friction control

ILLUMINATION FOR BRIGHTFIELD

• All models are supplied with a 3 W adjustable NeoLED™ illumination with integrated 100-240 V power supply
• Köhler illumination with field diaphragm

PACKAGE CONTENT

• Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil for models with a S100x objective
• All packed in a polystyrene box
