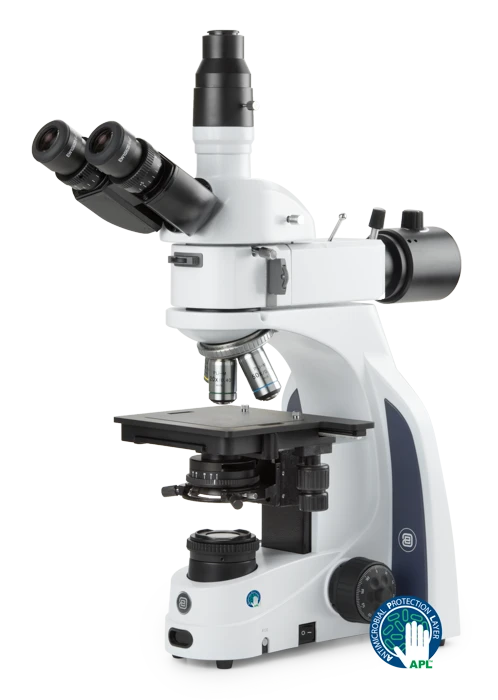

iScope materials science (Metallurgical) Series

Overview

Microscopes for materials science applications have the specific objectives and other tools like incident illuminations, polarization and compensation filters. This allows precise observation of materials like metals, plastics, minerals, asbestos, glass, wood and chemical materials. Euromex offers a range of metallurgical microscopes, microscopes with rotatable stages and stain-free objectives for polarized light observation, microscopes for asbestos identification and inverted materials science microscopes.

Key Highlights

• Trinocular model
• EWF 10x/20 mm eyepieces
• Reversed quintuple revolving nosepiece
• Infinity corrected IOS objectives
• 150 x 140 mm stage, supplied with a plain metal and plain glass insert
• Diascopic 3 W NeoLED Köhler illumination
• Epi-NeoLED illumination
• iCare sensor for energy saving
• Provided with APL (Antimicrobial Protection Layer)
• CSS - Cable Storage System

Specifications

EYEPIECE(S)

The metallurgical models are supplied with extended EWF 10x/20 mm (Ø 30 mm tube) eyepieces.

HEAD

Trinocular Siedentopf type head with 30° inclined tubes. Interpupillary distance from 48 to 76 mm. Two ± 5 diopter adjustments. A unique rotating system allows the ergonomical positioning of both tubes in a high (431 mm) and in a low position (397 mm). The trinocular head's 23.2 mm tube fits optional photo C-mount adapters with built-in 0.33x or 0.5x objective.

NOSEPIECE

Revolving quintuple reversed nosepiece on ball bearings.

STAGE

150 x 140 mm stage. Supplied with a plain metal and plain glass insert.

STANDARD CONDENSERS

Standard height adjustable Abbe N.A. 1.25 condenser with iris diaphragm. Suitable for slider with darkfield stop for magnifications up to maximum 400x. Optional height adjustable Abbe N.A. 0.9/1.25 swing-out condenser with iris diaphragm.

FOCUSING

Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 24 mm and is supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control.

REFLECTED ILLUMINATION

Metallurgical models are equipped with a reflected NeoLED illumination and external 100-240 V power supply. Supplied with a 0-90° polarization filter in slider, analyser in slider and a white, green, blue, yellow filter in slider.

TRANSMITTED ILLUMINATION

3 W adjustable NeoLED diascopic illumination with internal 100-240 V power supply for brightfield.

ICARE SENSOR

The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position.

CSS – CABLE STORAGE SYSTEM

iScope allows users to easily insert the power cable into the backside of the instrument, which enables easy storage. The integrated carrying grip at the back of the microscope ensures the safe transportation of the microscope.

CONFIGURATIONS

The iScope microscope is available in many configurations and can be upgraded with a variety of contrast types.

OBJECTIVES

• Plan PLMi IOS: 5x/0.10, 10x/0.25, 20x/0.40, S50x/0.65, S100x/0.80 (1)

PACKAGING

Supplied with power cord, dust cover, spare fuse where available and user manual. All packed in polystyrene boxes.
