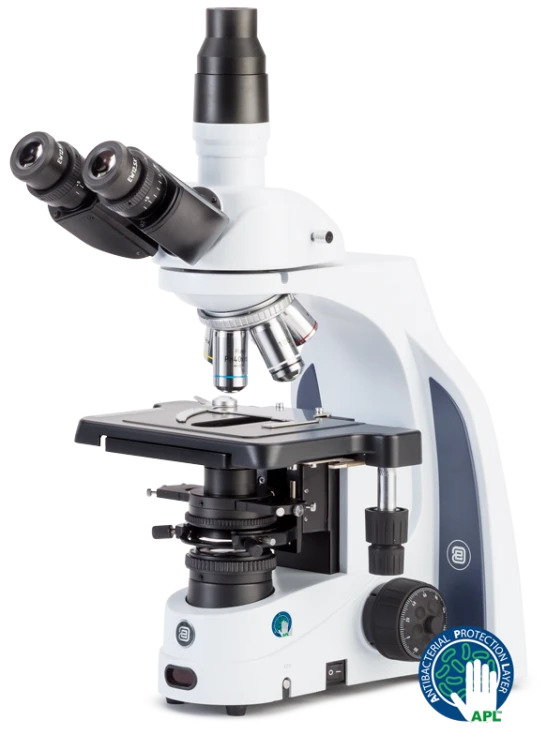

iScope materials science (Asbestos) Series

Overview

Microscopes for materials science applications have the specific objectives and other equipment like incident illuminations, polarization and compensation filters. This allows precise observation of materials like metals, plastics, minerals, asbestos, glass, wood and chemical materials. Euromex offers a range of metallurgical microscopes, microscopes with rotatable stages and stain-free objectives for polarized light observation, microscopes for asbestos identification and inverted materials science microscopes.

Key Highlights

• Binocular and trinocular models
• HWF 12.5/15 mm eyepieces
• Reversed quintuple revolving nosepiece
• Infinity corrected IOS objectives
• 216 x 150 mm mechanical rackless stage
• Integrated 79 x 52 mm mechanical stage
• Diascopic 3 W NeoLED Köhler illumination
• iCare sensor for energy saving
• Provided with APL (Anti-bacterial Protection Layer)
• CSS - Cable Storage System

Specifications

EYEPIECES

Supplied with HWF 12.5x/15 mm (Ø 30 mm tube) eyepieces, one includes a Walton-Beckett reticle.

HEAD

• Binocular and trinocular Siedentopf type heads with 30° inclined tubes. Interpupillary distance from 48 to 76 mm
• Two ± 5 diopter adjustments
• A unique rotating system allows the ergonomical positioning of both tubes in a high (431 mm) and in a low position (397 mm)
• The trinocular head 23.2 mm tube fits optional photo C-mount adapters with built-in 0.33x/0.35x, 0.5x or 0.75x objective

NOSEPIECE

Revolving quintuple reversed nosepiece on ball bearings.

STAGES

The iScope® rackless stage has no protruding parts, enables more smooth movements and is safer working.

CONDENSER

Height adjustable Abbe 1.25 phase contrast condenser supplied with slider with 10/40 annuli, green filter and alignment telescope.

FOCUSING

• Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel approximately 24 mm and is supplied with an adjustable rack stop to prevent damage to sample and objectives
• The coarse adjustment is equipped with friction control

ICARE SENSOR

• The unique iCare Sensor is developed to avoid unnecessary loss of energy
• The illumination of the microscope automatically switches off shortly after microscopists step away from their position

CSS – CABLE STORAGE SYSTEM

• iScope® allows users to easily insert the power cable into the backside of the instrument, which enables easy storage
• The integrated carrying grip at the back of the microscope ensures the safe transportation of the microscope

OBJECTIVES

• Plan PLi IOS: 4x/0.10, 10x/0.25, 20x/0.401), PLPHi S40x/0.65, S60x/0.851), S100x/1.251)

PACKAGE CONTENT

Supplied with green filter, phase centering telescope, power cord, dust cover, spare fuse where available and user manual. All packed in polystyrene boxes.

iScope (asbestos research)
