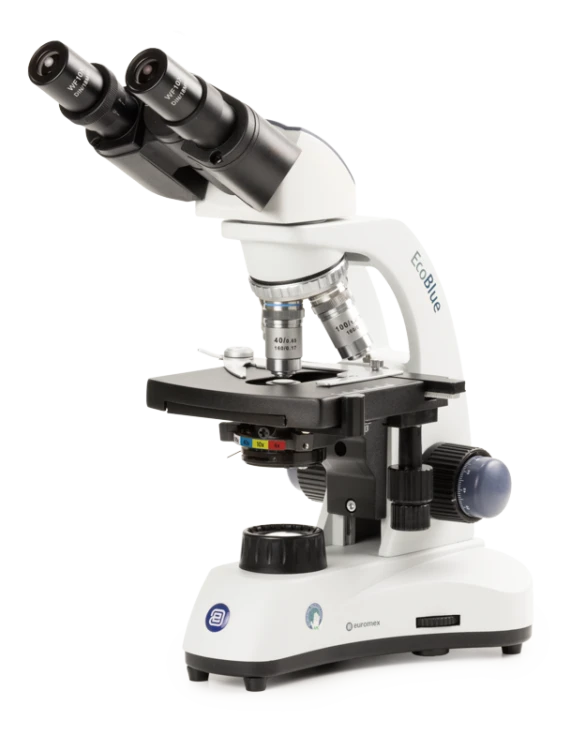

EcoBlue Series

Overview

The outstanding optical performance of the ergonomic Euromex BlueLine microscopes enables long productive working sessions for students for beginner, intermediate, and advanced science teaching classes. Microscopes for education need to be easy-to-use and student-friendly, which means able to withstand extensive use and rough handling.

The modern microscopes of the EcoBlue series are especially developed for educational purposes with primary focus on ergonomic and excellent price/quality ratio. These microscopes are supplied with secured eyepieces, achromatic objectives and an adjustable rack stop to prevent damage to sample and objectives.

Key Highlights

• Monocular, binocular and trinocular models with WF 10x/18 mm eyepiece(s)
• Models with integrated 5.0 MP CMOS camera
• Models for polarization applications
• Provided with APL (Antimicrobial Protection Layer)
• Reversed nosepiece with up to four achromatic objectives
• Models with integrated mechanical stage available
• Coaxial coarse and fine adjustments with rack stop
• Height adjustable color-coded Abbe condenser with iris diaphragm and filter holder
• Dual illumination system: white & halogen colored (Neo)LED(™)
• Cordless operation with rechargeable AA batteries
• Universal USB-C 5 Vdc charging port
• Multiplug 100-240 Vac / 5 Vdc adapter
• Ergonomic stand

Specifications

EYEPIECE(S)

• Wide field WF 10x/18 mm eyepiece with pointer
• The eyepieces of the binocular and trinocular models are supplied without pointer

HEAD

• Monocular models with 45° inclined tubes
• Binocular and trinocular models have 30° inclined tubes
• The interpupillary distance is adjustable between 48 and 75 mm
• All binocular and trinocular models have a diopter ± 5 diopter adjustment on left tube
• All heads are 360° rotatable
• Models with an integrated USB-2 camera are supplied with a 5.0 MP 1/2” CMOS sensor with 2560 x 1920 pixels resolution
• The EcoBlue can also be supplied with a discussion head

NOSEPIECE

• Reversed revolving nosepiece for four objectives on ball bearings
• Models for polarization are supplied with swing-out analyzer

OBJECTIVES - 45 mm PARFOCAL

• Achromatic 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 objectives
• The S40x, S60x and S100x oil immersion objectives are spring loaded
• The DLED-S models for polarization are equipped with semi-plan objectives

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.

FOCUSING

• Coaxial coarse and fine adjustments, 200 graduations, 12.5 µm per graduation, 2.5 mm per rotation, total travel approximately 15 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objective

STAGES

• Plain 123 x 119 mm stage with two non-removable object clamps (optional EC.9500 attachable 51 x 26 mm X-Y mechanical stage available)
• Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage
• The models for polarization are supplied with 129 mm circular stage, 360° rotatable and 2 object clamps

CONDENSER

• Height adjustable color-coded Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
• The models for polarization have a rack & pinion adjustment, all other models carry a helicoidal adjustment

DUAL ILLUMINATION SYSTEM

• 1 W white (Neo)LED(™): 6000 – 6500 K, ideal for standard observations with crisp, cool lighting
• 1 W halogen colored (Neo)LED(™): 3000 – 3200 K, enhances contrast for specific applications such as transparent objects

All models are supplied with three rechargeable AA batteries for cordless operation. Equipped with a universal USB-C 5 Vdc charging port and 100-240 Vac / 5 Vdc multiplug adapter.

ANTI-THEFT SLOT

At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft.

APL (Antimicrobial Protection Layer)

Using the same technology already used extensively throughout the healthcare environment in wall coatings, patient lighting, air pressure stabilization and suction liners, APL prevents the growth of unwanted microbes that can cause degradation, discoloration, staining or odors of the Euromex microscopes.

PACKAGING

• Supplied with three rechargeable AA batteries, a 100-240 Vac / 5 Vdc USB-C multiplug adapter, white filter, dust cover, spare fuse, user manual. A 5 ml immersion oil for models with an S100x oil objective
• All packed in a polystyrene box

EcoBlue standard

EcoBlue Polarization

EcoBlue Digital
