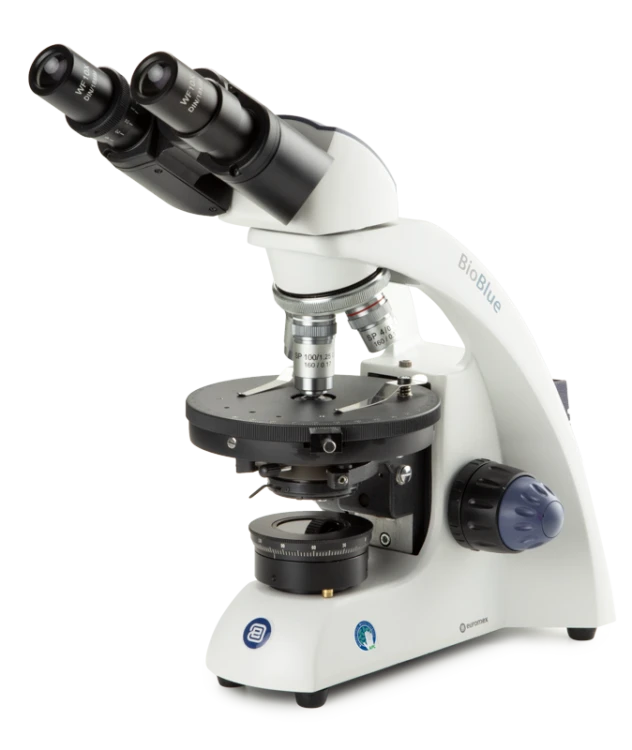

BioBlue Series

Overview

Extensive experience of Euromex optical engineers has contributed to the development and implementation of the BioBlue series with the finest optical components and guaranteed performance, which means clear bright images at every magnification. The modern microscopes of the BioBlue series are especially developed for educational purposes with primary focus on ergonomic and today's quality standards.

The DIN WF 10x/18 eyepieces and the semi plan achromatic corrected 45 mm DIN objectives of the BioBlue models generate a crisp high-resolution image. When changing magnification the image remains perfectly in focus and centered. The 120 x 120 mm plain stage and 130 x 130 mm stage with double layered 70 x 28 mm X-Y mechanical stage enable a 2 µm precision positioning of the specimen.

Key Highlights

• WF 10x/18 mm eyepiece(s)
• BioBlue EVO models with WF 10x/20 mm eyepieces and Köhler NeoLED™ illumination
• Models with an integrated 5.0 MP CMOS camera
• Models with a 7” LCD screen or tablet
• Models for polarization applications
• Back panel with smart storage solutions
• Reversed nosepiece for 4 semi plan objectives
• Color-coded height adjustable Abbe condenser
• Quick focus aid
• Dual illumination system: white & halogen colored 1 W LED illumination
• Cordless operation with rechargeable AA batteries
• Universal USB-C 5 Vdc charging port
• Multiplug 100-240 Vac / 5 Vdc adapter
• Provided with APL (Antimicrobial Protection Layer)

Specifications

EYEPIECE(S)

• WF 10x/18 mm Wide field
• Polarization models are supplied with one extra WF 10x/18 mm eyepiece with crosshairs and micrometer
• Secured and with pointer for monocular models
• The BioBlue EVO models are supplied with WF 10x/20 mm eyepieces

HEAD

• All heads are 360° rotatable and secured
• Monocular models with 45° inclined tubes
• Binocular and trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube
• The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
• Models with digital head are supplied with an integrated 5.0 MP 1/2” CMOS sensor with 2560 x 1920 pixel resolution USB 2.0 camera
• Models supplied with a 7” LCD screen
• Optional discussion head available

NOSEPIECE

Reversed quadruple nosepiece on ball bearings. Models for polarization are supplied with a swing-out analyzer.

OBJECTIVES - 45 mm parfocal

• Supplied with semi plan 4x/0.10, 10x/0.25, S40x/0.65, S60x/0.85, S100x/1.25 oil immersion objectives, configuration is depending on model
• The S40x, S60x and S100x oil immersion objectives are spring loaded (to prevent damage to sample and objectives)

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.

FOCUSING

• Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation
• Total travel approximately 23 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• The coarse adjustment is equipped with friction control

STAGE

• 130 x 130 mm with mechanical 70 x 28 mm X-Y translation stage except for models BB.4200 and BB.4205
• These models have a 120 x 120 mm plain stage supplied with two non-removable object clamps
• The models for polarization are supplied with 129 mm round stage, 360° rotatable and two object clamps

CONDENSER

Height adjustable color-coded Abbe condenser N.A. 1.25 with iris diaphragm and filter holder.

DUAL ILLUMINATION SYSTEM

• 1 W white (Neo)LED: 6000 – 6500 K, ideal for standard observations with crisp, cool lighting
• 1 W halogen colored (Neo)LED: 3000 – 3200 K, enhances contrast for specific applications such as transparent objects

The polarization models are also supplied with the double LED illumination for correct color rendering (very similar to the halogen light spectrum). The EVO models are equipped with Köhler NeoLED™ illumination.

NeoLED™ ILLUMINATION

Binocular and trinocular models are supplied with an adjustable NeoLED™ illumination system for increased light output.

BACK PANEL – ORGANIZED & EFFICIENT

The BioBlue features a revolutionary back panel with smart storage solutions:

• 5-slide specimen holder
• Dual tool holders
• Built-in power supply storage
• Storage for immersion oil
• Dual illumination switch
• Integrated cable roll-up system
• USB-C power input

POLARIZATION EQUIPMENT

The swing-out analyzer is mounted in a slider under the head. The rotatable 360° polarizer fits on the collector lamp.

POLARIZATION MODELS

• Supplied with one extra WF 10x/18 mm eyepiece with crosshairs and micrometer
• Equipped with analyzer, mounted in a slider under the head
• 360° Rotatable, graduated polarizer on the lamp house
• Standard supplied with D-LED illumination for correct color rendering (very similar to the halogen light spectrum) and an integrated 100-240 Vac power supply
• Polarisation attachments for standard microscopes are available optionally

DIGITAL MODELS

See BioBlue Digital.

ANTI-THEFT SLOT

At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft.

APL (Antimicrobial Protection Layer)

Using the same technology already used extensively throughout the healthcare environment in wall coatings, patient lighting, air pressure stabilization and suction liners, APL prevents the growth of unwanted microbes that can cause degradation, discoloration, staining or odors of the Euromex microscopes.

PACKAGE CONTENT

• Supplied with 100-240 Vac / 5 Vdc USB multi-plug power adapter, three rechargeable type AA batteries, dust cover, white filter, user manual and 5 ml immersion oil for models with S100x oil objective
• Polarisation models are supplied with a cross hair eyepiece for centering
• All packed in a polystyrene box
