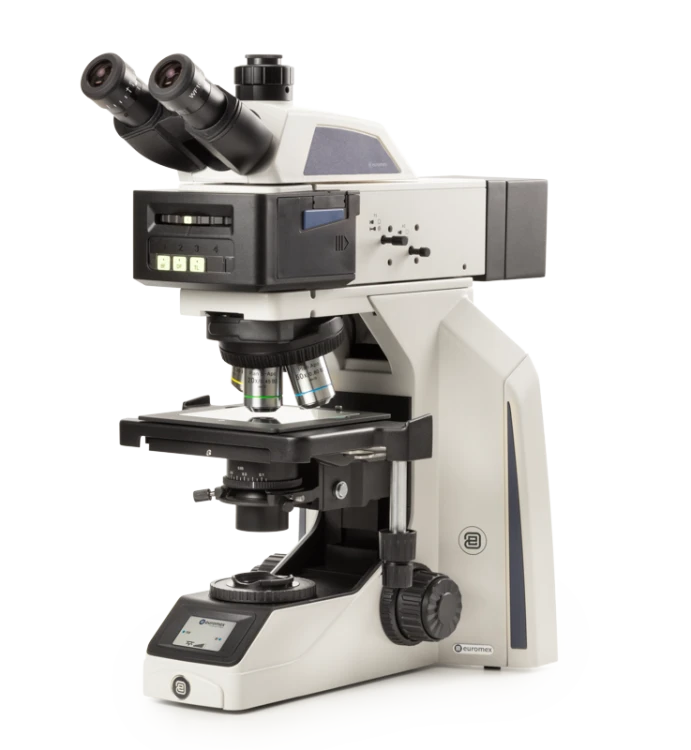

Achios-X Observer Metallurgical Series

Overview

For advanced materials science applications.

The ergonomic design and cutting-edge optics of the Achios-X Observer make it the perfect choice for advanced materials science applications. With 22 mm field of view eyepieces, semi-plan apochromatic and plan apochromatic objectives, the Achios-X Observer delivers exceptional color fidelity and high-resolution imaging for precise and reliable observations for Materials science applications.

Key Highlights

• Extra Wide field WF eyepieces 10x/22 mm, Ø 30 mm
• Revolving quintuple reversed nosepiece
• Brightfield and darkfield Epi illumination
• Nomarski DIC (optional)
• IOS Plan Semi-Apo and Plan Apo objectives
• Low positioned stage adjustment knobs
• Smart Light Control (SLC)
• 3 W NeoLed with adjustable color temperature
• 10 years warranty

Specifications

EYEPIECES

EWF 10x/22 mm eyepiece, with diopter adjustment, Ø 30 mm.

HEADS

• Standard Siedentopf trinocular with 30° inclined tubes, with 50:50 beamsplitter
• Ergonomic tilting head (0° - 35°) with 50:50 beamsplitter
• Interpupillary distance 47-78 mm

NOSEPIECE

• A quintuple nosepiece on ball-bearings, equipped with gripped ring
• With 26 mm objectives mounting threads

OBJECTIVES - BRIGHTFIELD/DARKFIELD

• Plan Semi apochromatic Infinity corrected 5/10/20x IOS objectives
• Plan apochromatic Infinity corrected 50/100x IOS objectives
• Optional. All objectives are IOS 45 mm parafocal and have a M26 mm mounting thread. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

• Plan Semi-Apo (PL-SAMi): 5x/0.15, WD 20 mm, 10x/0.30, WD 11 mm, 20x/0.45, WD 3.1 mm
• Plan Apo (PL-AMi): 50x/0.80, WD 1 mm, 100x/0.90, WD 1 mm*

STAGE

• 238 x 140 mm rackless hard coated stage with 78 x 54 mm X-Y mechanical stage
• A glass inlay and a metal inlay

FOCUSING

Coarse travel 18 mm, fine adjustment 0.2 mm per rotation with 0.002 mm divisions.

ILLUMINATION

• The Achios-X Observer materials science microscope is equipped with adjustable Epi and Diascopic intensity adjustable 3 W NeoLED illumination
• With external 100-240 Vac power supply
• A rotating cassette allows quick selection between reflected darkfield/brightfield and transmitted brightfield

LIGHT AND COLOR TEMPERATURE CONTROL

The Achios-X Observer introduces Smart Light Control. This intelligent function memorizes the light intensity level for each objective. The color temperature of the NeoLED light source can be adjusted and stored. This innovation not only heightens comfort but also saves valuable time during routine magnification shifts. The eco-friendly NeoLED light source is both environmentally conscious and built to endure.

NeoLED

The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to:

• collect more oblique light from the NeoLED™ light source, which increases the light output significantly
• consume less energy for a higher level of light intensity
• produce images at higher resolutions due to the larger aperture of the NeoLED™
• achieve a longer life span, up to 50.000 hrs nominal, L70 norm

LONG WORKING DISTANCE CONDENSER

In height adjustable long working distance N.A. 0.65 condenser with numerical aperture identification marks.

POLARIZATION

The microscope comes with an analyzer and a polarizer, which can easily be inserted into the free slots of the Epi-Illuminator.

DIFFERENTIAL INTERFERENCE CONTRAST (DIC)*

The DIC-module shows differences in height of structures, which - ordinarily - cannot be displayed using only brightfield technique. These relief-like images are ideal for surface inspections of wafers, LCD screens etc.

• Optional

CSS – CABLE STORAGE SYSTEM

Allows users to easily stow away excess cable length onto the back of the instrument during operation, and to roll up the power cable for easy storage.

CARRYING GRIP

The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope.

PACKAGING

Supplied with power cord, analyzer, polarizer, dust cover, a spare fuse, user manual and universal tool. All packed in a polystyrene box.
