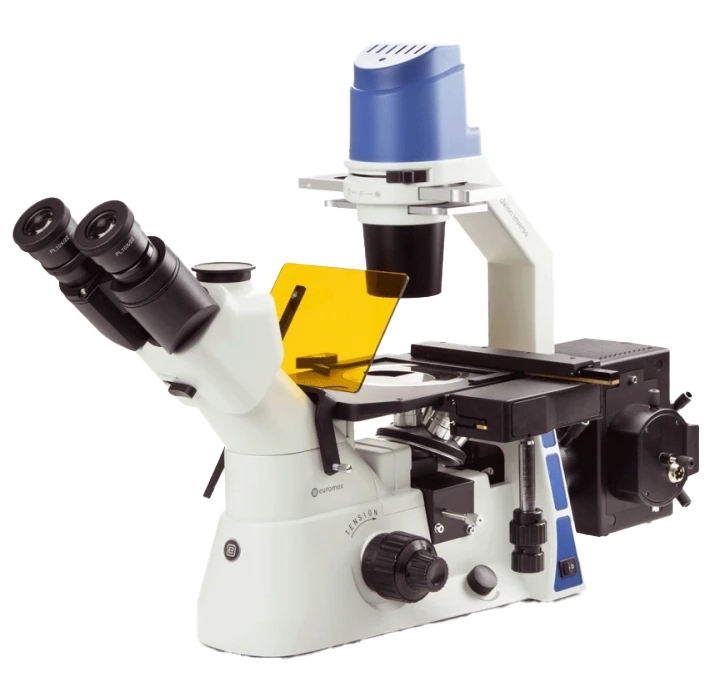

Oxion Inverso and fluorescence Series

Overview

The inverted Oxion Inverso biological microscopes of Euromex are available for bright field, phase contrast and fluorescence applications. Specific objectives compensate the 1.2 mm thick bottoms of the petri dishes or culture dishes.

The Oxion Inverso inverted microscopes (Life Science) are useful for observation of living organisms and tissues cultures in cell culture dishes and flasks.

Key Highlights

• Life Science applications
• Observation of tissue cultures, living cells
• Brightfield, phase contrast and fluorescence
• Long working distance IOS plan achromatic objectives
• Revolving quintuple nosepiece
• 5 W LED transmitted illumination
• 100 W mercury vapor lamp for fluorescence

Specifications

EYEPIECES

Pair of DIN HWF plan 10x/22 mm eyepieces.

HEADS

• Trinocular 45° inclined tubes with extended low and high positions for eyepieces
• One diopter adjustment on left eyepiece
• Interpupillary distance of 54 to 75 mm
• Trinocular head with 0-100 % positions

NOSEPIECES

Revolving quintuple nosepiece on ball-bearings.

OBJECTIVES FOR BRIGHTFIELD

(models OX.2003-PL and OX.2053-PL).

• Infinity color corrected long working distance plan 10x/0.25, 20x/0.40, 40x/0.60 IOS objectives
• An optional 60x/0.70 IOS objective is also available

OBJECTIVES FOR PHASE CONTRAST

(models OX.2003-PLPH and OX.2053-PLPH).

Infinity color corrected long working distance plan phase 10x/0.25, 20x/0.40, 40x/0.60 IOS objectives.

OBJECTIVES FOR BRIGHTFIELD AND FLUORESCENCE MICROSCOPY

(models OX.2253-PLPHF and OX.2453-PLPHF).

• Infinity color corrected long working distance plan Fluarex 10x/0.30, 20x/0.45, 40x/0.65 IOS objectives
• An optional plan Fluarex 60x/0.75 IOS objective is also available

OBJECTIVES FOR PHASE CONTRAST AND FLUORESCENCE MICROSCOPY

(models OX.2253-PLPHF and OX.2453-PLPHF).

Infinity color corrected long working distance plan fluarex 10x/0.30 and plan phase fluarex 20x/0.45 and S40x/0.65 IOS objectives. All objectives corrected for 1.2 mm thickness. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.

STAGE

Stage 250 x 230 mm equipped with a coaxial mechanical 120 x 78 mm X-Y stage, delivered with:

• metallic insert for Ø 35 mm cell culture dish
• 76 x 26 mm slide holder
• glass insert with hole
• optional universal cell culture dish holder

CONDENSER

• N.A. 0.30 condenser with iris diaphragm. Working distance 72 mm
• The models for the phase contrast OX.2003-PLPH, OX.2053-PLPH, OX.2253-PLPHF and OX.2453-PLPHF are delivered with a slider with 4x/10x and 20x/40x pre-centered phase rings

FOCUSING ADJUSTMENT

Coaxial 25 mm coarse and fine adjustments, 2 μm precision and with friction adjustment.

ILLUMINATION

• Transmitted 5 W LED. Intensity adjustable with internal 100-240 V power supply. Fuse holder 3.15 A / 250 V
• The fluorescence models are equipped with a reflected 100 W HBO mercury vapor light source with external 100-240 V power supply, fuse holder 3.15 A / 250 V, UV protection shield

LED ILLUMINATION FOR FLUORESCENCE

Two LED sources for fluorescence are available for 4 or 9 excitation wavelengths. See our product LE.6400-OX.

FILTERS FOR PHASE CONTRAST MODELS

Interference filter 550 nm green and blue filter, 45 mm diameter.

STANDARD FLUORESCENCE FILTERS (for fluorescence models)

The fluorescence models OX.2253-PLF and OX.2253-PLPHF are standard supplied with two filter sets for excitation:

• in the blue spectrum, OX.9745, EX465-495 (BP) DM505 (LP) EM515-555 (BP)
• in the green spectrum, OX.9746, EX540-580 (BP) DM600 (LP) EM605-665 (BP)

The fluorescence models OX.2453-PLF and OX.2453-PLPHF equipped with a 4 positions filter rail equipped with three standard filter sets for excitation:

• in the blue spectrum, OX.9745, EX465-495 (BP) DM505 (LP) EM515-555 (BP)
• in the green spectrum, OX.9746, EX540-580 (BP) DM600 (LP) EM605-665 (BP)
• in the UV spectrum, OX.9747, EX361-389 (BP) D415 (LP) EM435-485 (BP)

PACKAGE CONTENT

• Supplied with power cord, dust cover and user manual
• Phase contrast models are supplied with green filter and alignment telescope
• Microscope supplied in a transport case

ICSI (INTRACYTOPLASMIC SPERM INJECTION) SET FOR OXION INVERSO

• Perfect for inexperienced users in need of training practice as well as for professionals
• Complete manual system with large movement range
• Easy micropipette repositioning ('Manual Home Position')
• Adjustable micropipette holder angle between 20° and 40°
• 3D Hydraulic Manipulation Joysticks for smooth movement
• Pneumatic Air Injector for ICSI and holding, no service required
• Movement range X/Y/Z: 20 mm each, 1 mm for one complete turn of the handle
• Optional heating stage with controller

Set includes two 3D hydraulic joysticks, two pipette setup mechanisms, one connection bar with moving handle, two air injectors with tubing and pen type micromanipulation, pipette holder, two metal plates for injectors, one set of Allen wrenches, one ruler for mechanic home position adjustment. Unit is packed in a solid carry case.

HEATING STAGE AND CONTROLLER

Heating glass stage for Euromex microscope stage with 110 mm circular hole. The glass plate fits the circular opening of the X-Y stage and enables a flat glass object-plate with constant temperature. Aluminium frame for superior resistance and flatness. Glass thickness 0.5 mm. Plate diameter 110 mm.

2-Channel Temperature Controller with touchscreen interface, one controller can control up to two devices, external temperature sensor and self calibration routines. Temperature range from ambient to 60°C, accuracy ± 0.3°C, 4.3'' touch screen, on-board data logging to USB, alarm buzzer and external alarm connector.
