Achios-X Inverso (Metallurgical) Series

Overview

For advanced materials science applications.

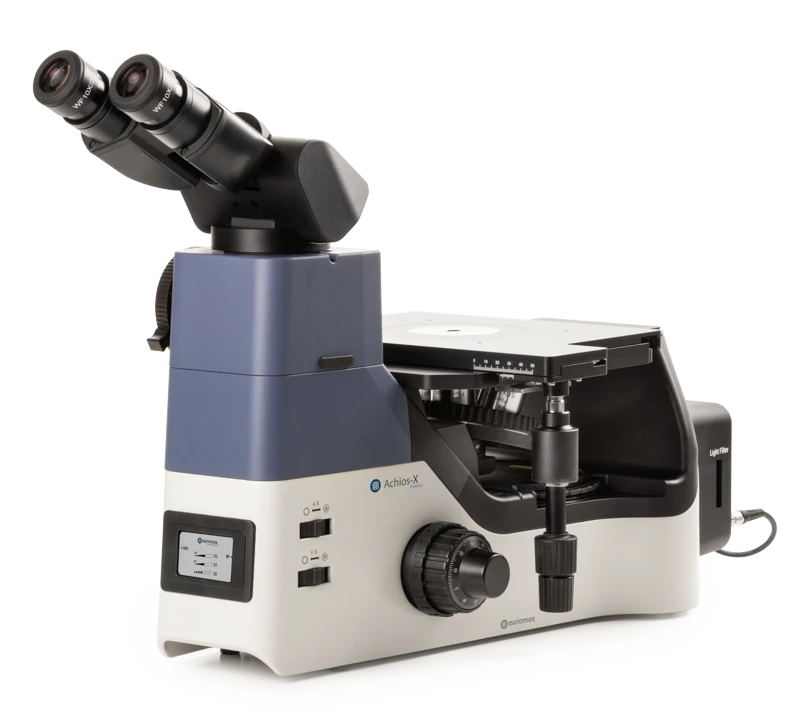

The Achios-X Inverso is a high-performance inverted microscope designed for demanding materials science applications. It supports brightfield, darkfield and polarization, with long working distance plan and apochromatic objectives for superior imaging without cover glass correction. Ergonomic features include a tilting head and low-positioned controls. The Smart Light Control system saves intensity settings per objective, enhancing efficiency. NeoLED™ illumination delivers high-contrast, high-resolution images with minimal energy use. With robust construction, intuitive operation and advanced optics, the Achios-X Inverso is ideal for examining metals, polymers and complex materials in research and industrial environments.

Key Highlights

• Brightfield, darkfield, polarization
• Head with ergo tilting 5º - 35º tubes
• Long working distance IOS plan objectives
• Long working distance IOS apochromatic objectives
• Low positioned stage adjustment knobs
• 3 W NeoLED™ illumination
• LCD screen for Smart Light Control

Specifications

EYEPIECES

SWF 10x/22 mm widefield eyepieces with adjustable diopter, Ø 30 mm tubes and -5/+5 diopter.

HEAD

• Binocular ergo head with 5-35° tilting tubes
• Interpupillary distance of 48 to 75 mm
• Side photo port with 80:20 beamsplitter, c-mount lenses optional

NOSEPIECE

Revolving quintuple nosepiece on ball-bearings, coded.

BRIGHTFIELD/DARKFIELD OBJECTIVES

Plan infinity corrected PLi, IOS 45 mm parfocal, high numerical, long working distance, no cover glass correction, M26 mount.

• 5x/0.12 WD 20 mm BD
• 10x/0.30 WD 11 mm BD
• 20x/0.45 WD 3.1 mm BD

Plan Apochromatic infinity corrected PL-AMi, IOS 45 mm parfocal, high numerical, long working distance, no cover glass correction, M26 mount.

• 50x/0.80 WD 1 mm BD
• 100x/0.90 WD 1 mm BD (optional)

BD = Brightfield/Darkfield, WD = working distance. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.

STAGE

• Stage 226 x 178 mm with Vernier scale
• Equipped with a coaxial mechanical 50 x 50 mm X-Y stage
• Maximum weight for sample: 5 kg

Supplied with:

• Metal insert with hole Ø 10 mm
• Metal insert with hole Ø 15 mm
• Metal insert with hole Ø 25 mm
• Metal insert that can hold an object clamp

FOCUS ADJUSTMENT

• Low positioned for more comfort
• Coaxial 37.5 mm coarse and fine adjustments with 200 graduations
• Precision 1 μm, 0.2 mm per rotation
• Fine focus knobs are left/right interchangeable

ILLUMINATION AND FILTERS

• Transmitted 3W NeoLED™ illumination with adjustable intensity
• Internal power supply 100-240 V (CE). Fuse 500 mA 250 Vac
• Adjustable field diaphragm and condenser aperture (both motorized)
• Adjustable color temperature
• Slot for filter. Blue, green, yellow, frosted white filters included

POLARIZATION

• Slot with 360° rotatable polarizer
• Analyzer built in the illumination turret

SMART LIGHT CONTROL

This intelligent function:

• memorizes the light intensity level for each objective
• memorizes field and aperture diaphragm position
• memorizes color temperature
• increases comfort
• saves valuable time during routine magnification shifts
• includes a sleep function

NeoLED

The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length. Four main benefits:

• More oblique light from the NeoLED™ light source, which increases the light output significantly
• Less energy is required to achieve this level of light intensity
• The larger aperture of NeoLED™ allows the optical system of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics
• Super long life span, up to 50.000 hrs nominal, L70 norm

PACKAGE CONTENT

4 Metal inserts for stage with 10/15/25 mm hole, 1 metal insert for holding an object clamp, 1 object clamp, 4 filter sliders: blue/green/yellow/frosted white, a rotatable polarizer slider, a 1x C-mount adapter, power cord, dust cover and user manual.

Achios-X Inverso metallurgical
