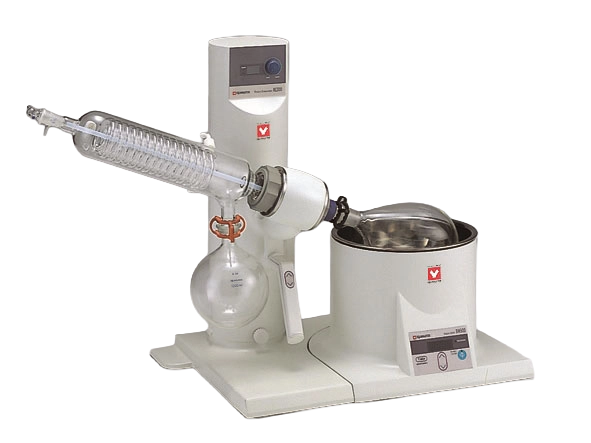

RE301 Series
The RE301 Series is a basic rotary evaporator line equipped with a one-touch electric lift and digital motor speed setting and display. It uses a unique durable vacuum seal suitable for flasks up to 2L and provides stable rotation across low and high speeds.
Manufacturer: Yamato — Japan
Overview
The RE301 Series is a basic rotary evaporator line equipped with a one-touch electric lift and digital motor speed setting and display. It uses a unique durable vacuum seal suitable for flasks up to 2L and provides stable rotation across low and high speeds. The series includes 24 model variants combining glassware sets A, B, or C with oil bath, water bath, and TA300 or VR300 accessory configurations, and it operates on a universal 100-240VAC power supply.
One-Touch Electric Lift
One touch electric lift for easy up and down movement.
Digital Speed Display
The evaporator's motor speed (rpm) is digitally set and displayed.
Durable Vacuum Seal
Unique durable vacuum seal suitable up to 2L flasks.
Stable Rotation
Stable rotation at low and high speeds.
Power Outage Switch
Equipped with lift up switch in case of power outage.
Removable Bath
Removable bath for easy cleaning and water replacement, with the option for water or oil bath.
Compact Fume Hood Fit
Compact design fits into any fume hood.
Universal Power Supply
Universal power supply: works with 100-240VAC.
Common Specifications
| Specification | RE301 Series |
|---|---|
| Motor | DC brushless motor |
| Rotation speed | 20~250 (rpm) |
| Lift stroke | 130mm |
| Rotational speed setting | Control knob (digital indication) |
| Safety function (main unit) | Manual-setting lower limit, motor overload |
| Lifting feature | Motorized lifting system |
| Power Source | AC100 to 240V 1.5A |
| Weight | 14.1kg |
Model Comparison
| Specification | RE301A-O | RE301A-OT | RE301A-OV | RE301A-T | RE301A-V | RE301A-W | RE301A-WT | RE301A-WV | RE301B-O | RE301B-OT | RE301B-OV | RE301B-T | RE301B-V | RE301B-W | RE301B-WT | RE301B-WV | RE301C-O | RE301C-OT | RE301C-OV | RE301C-T | RE301C-V | RE301C-W | RE301C-WT | RE301C-WV |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External dimensions (W×D×H mm) | 828×400×586mm | 828×400×586mm | 828×400×586mm | 828×400×586mm | 828×400×586mm | 828×400×586mm | 828×400×586mm | 828×400×586mm | 643×400×727mm | 643×400×727mm | 643×400×727mm | 643×400×727mm | 643×400×727mm | 643×400×727mm | 643×400×727mm | 643×400×727mm | 643×400×727mm | 643×400×727mm | 643×400×727mm | 643×400×727mm | 643×400×727mm | 643×400×727mm | 643×400×727mm | 643×400×727mm |
