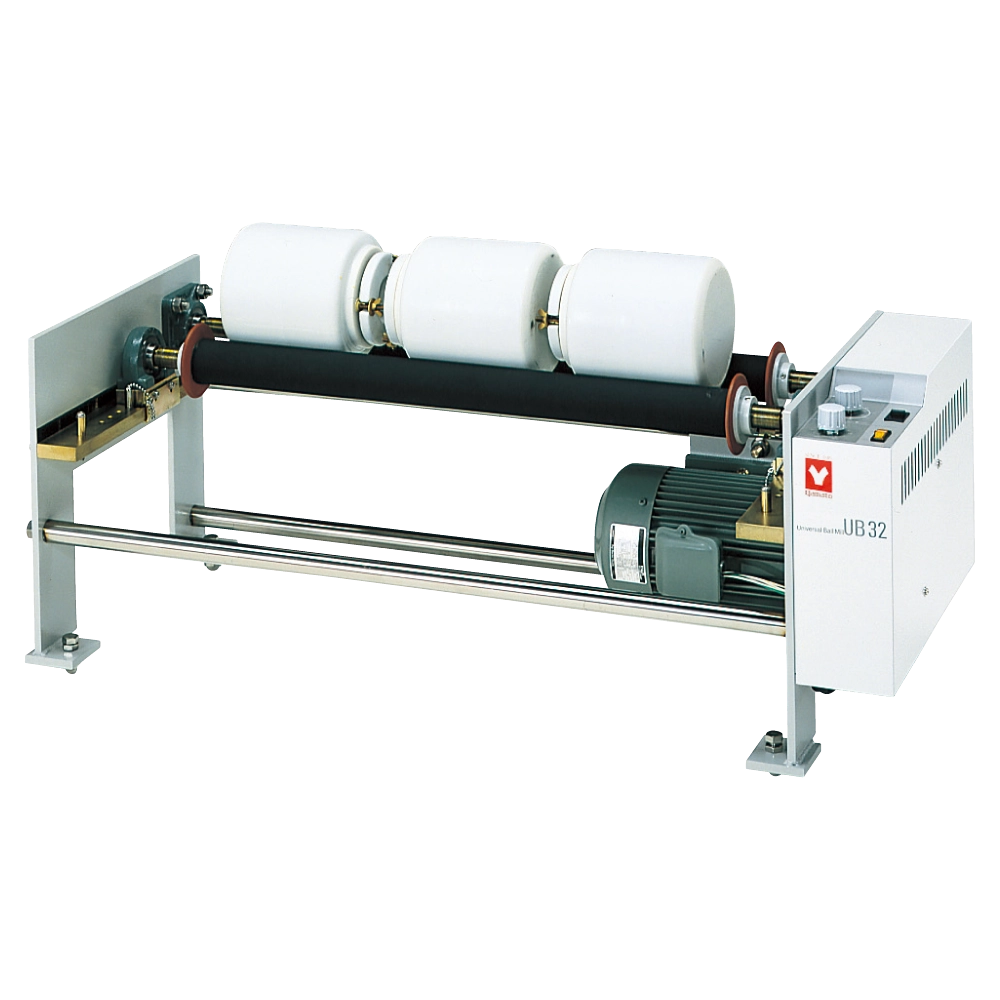

Universal Ball Mill(UB32)
The UB32 is a universal ball mill designed for easy pot replacement, accommodating pots from 9 to 30 cm in diameter to suit different sample sizes. Rotation speed is adjustable via a speed controller knob, and operation runs automatically by timer.
Manufacturer: Yamato — Japan
Overview
The UB32 is a universal ball mill designed for easy pot replacement, accommodating pots from 9 to 30 cm in diameter to suit different sample sizes. Rotation speed is adjustable via a speed controller knob, and operation runs automatically by timer. Natural rubber rollers with adjustable spacing and a durable, low-maintenance design round out the unit's features.
Timer-Controlled Operation
Automatic operation by timer.
Easy Pot Replacement
It can be easily replaced and used with pots from 9 to 30 cm according to the sample.
Adjustable Rotation Speed
Rotation speed can be adjusted by speed controller knob.
Adjustable Roller Spacing
The rollers are made of special rubber and the optimum roller spacing can be set according to the diameter of the pot.
Durable and Low Maintenance
Excellent durability and easy maintenance.
Common Specifications
| Specification | Universal Ball Mill(UB32) |
|---|---|
| Roller | Made of natural rubber O.D.50mm×L650mm |
| Rotating speed | Approx. 200~600r.p.m. |
| Motor | Capacitor type 4 pole 200W feedback control |
| Timer | 60/72 min. (50/60Hz) |
| External dimensions (W×D×H mm) | 1010×410×380mm |
| Power Source | AC115V/AC220V (50/60Hz) Single phase with external step-down transformer |
| Weight | 51kg |
| Optional accessories | Pot with alumina ball (O.D.90/120/150/180/210/240/300mm) |
