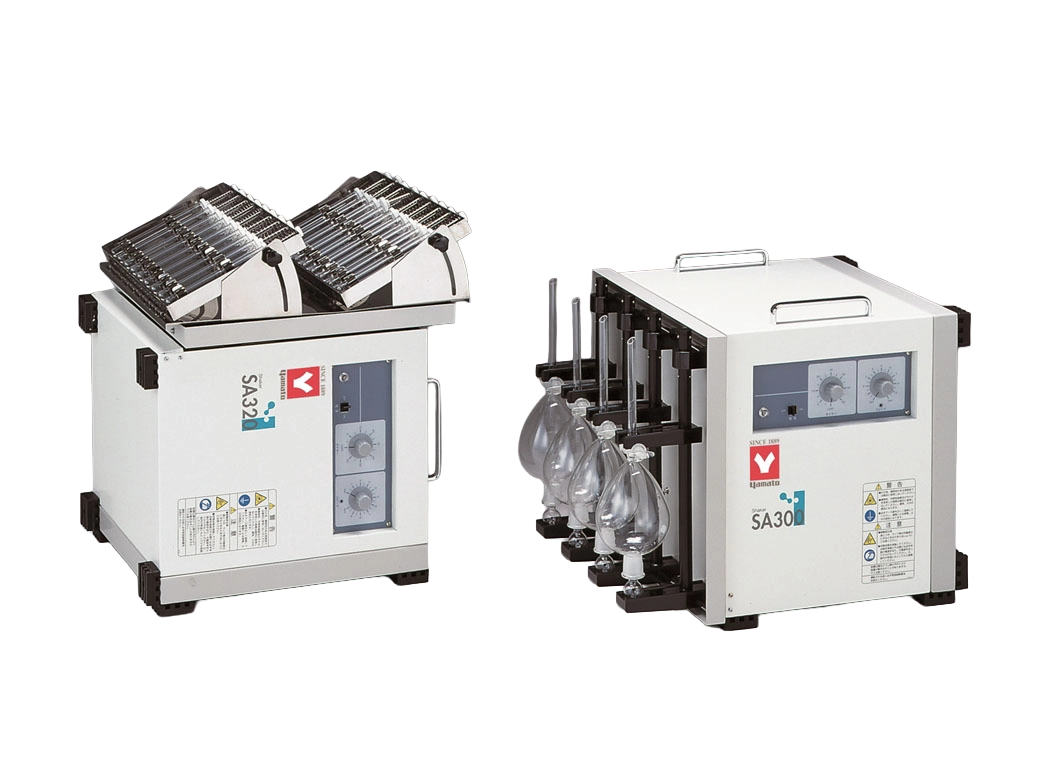

SA Series
The SA Series is a laboratory shaker line offering both vertical and horizontal shaking motion, providing stable turns from low to high speed in a compact, powerful design. Easy-to-use dial settings with digital displays control shaking frequency, and the unit can switch between timer operation and continuous operation.

Manufacturer: Yamato — Japan
Overview
The SA Series is a laboratory shaker line offering both vertical and horizontal shaking motion, providing stable turns from low to high speed in a compact, powerful design. Easy-to-use dial settings with digital displays control shaking frequency, and the unit can switch between timer operation and continuous operation. Various holders attach and detach easily and are extremely durable, and the SA300/SA320 models shake vertically as the main orientation but can be laid on their side for horizontal shaking.
Stable Speed Range
Stable turns from low to high speed can be obtained.
Compact Powerful Design
Compact and equipped with a powerful shaking load.
Dial and Digital Display
Easy-to-use dial settings for shaking frequency and digital displays.
Timer or Continuous Operation
Possible to switch between timer operation and continuous operation.
Durable Holders
Various holders can be easily attached and removed and are extremely durable.
Vertical and Horizontal Shaking
SA300/SA320 shake vertically as the main orientation but can be laid on their side to shake horizontally.
Common Specifications
| Specification | SA Series |
|---|---|
| Shaking method | Horizontal / Vertical shaking |
| Max. number of separating funnel | 100ml×5, 300ml×4, 1000ml×3, 200ml×4, 500ml×4, 2000ml×2 |
| Shaking speed: horizontal | 20 to 300rpm |
| Shaking speed: vertical | 20 to 300rpm |
| Speed setting display | Dial setting |
| Timer | Dial setting 0 to 60 min. (minimum scale 5 min.), continuous switching function |
| Motor | DC motor 90W |
| Accessories | Fuse×1, Carbon brush×1 |
Model Comparison
| Specification | SA300 | SA320 | SA400 |
|---|---|---|---|
| External dimensions (W×D×H mm) | 460×460×425mm | 460×460×423mm | 520×460×483mm |
| Power supply | AC115/220V Single-phase | AC115/220V Single-phase | AC115/220V Single-phase with step-down transformer |
| Weight | 40kg | 40kg | 39kg |
