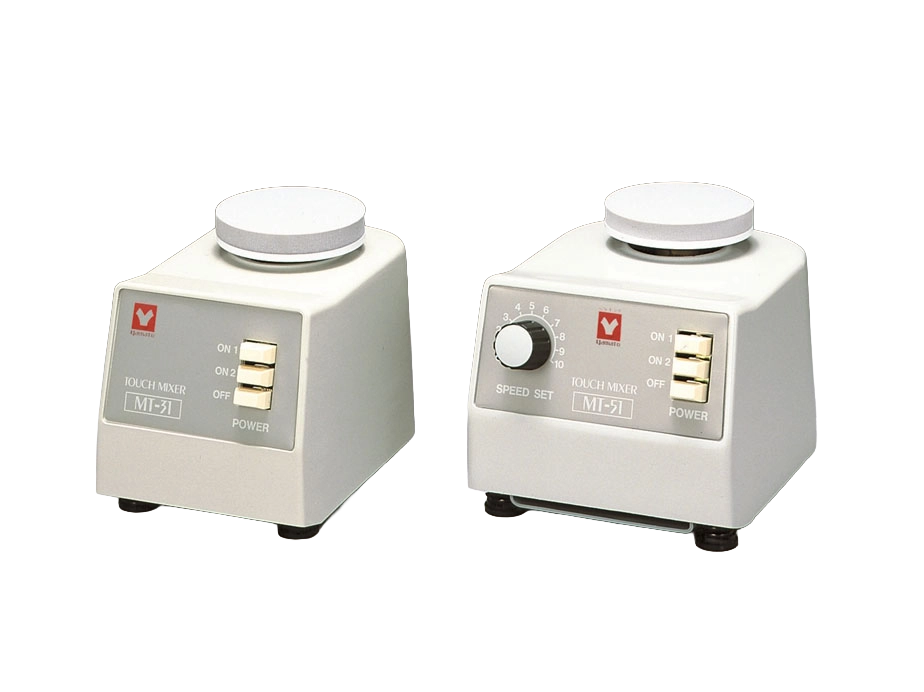

MT Series
The MT Series comprises compact touch mixers designed for fixed and variable stirring of test tubes, centrifuge tubes, color comparison tubes, and small Erlenmeyer flasks up to 100mL.
Manufacturer: Yamato — Japan
Overview
The MT Series comprises compact touch mixers designed for fixed and variable stirring of test tubes, centrifuge tubes, color comparison tubes, and small Erlenmeyer flasks up to 100mL. The mixer starts automatically when a sample is placed on the stirring stage switch, and it is also compatible with continuous operation via a separate switch. The MT-31 and MT-51 models differ in external dimensions and weight.
Compact Continuous Operation
Compact type touch mixer for continuous operation.
Touch-Activated Stirring
Loaded with a stirring stage switch which starts mixing by putting a sample on it.
Common Specifications
| Specification | MT Series |
|---|---|
| Revolution | 2,800/3,300rpm (50/60Hz) |
| Motor | Shaded pole motor, 2W |
| Switch | ON1: Touch switch, ON2: Continuous switch |
| Stirring ware | Test tube, Centrifugal tube, Colour comparison tube, Erlenmeyer flask (Max. 100mL) |
| Stirring surface size | φ70mm |
| Stirring surface material | Polyurethane |
| Power Source | AC115V/AC220V Single-phase with step-down transformer |
Model Comparison
| Specification | MT-31 | MT-51 |
|---|---|---|
| External dimensions (W×D×H mm) | 104×155×123mm | 128×165×125mm |
| Weight | 1.6kg | 1.8kg |
