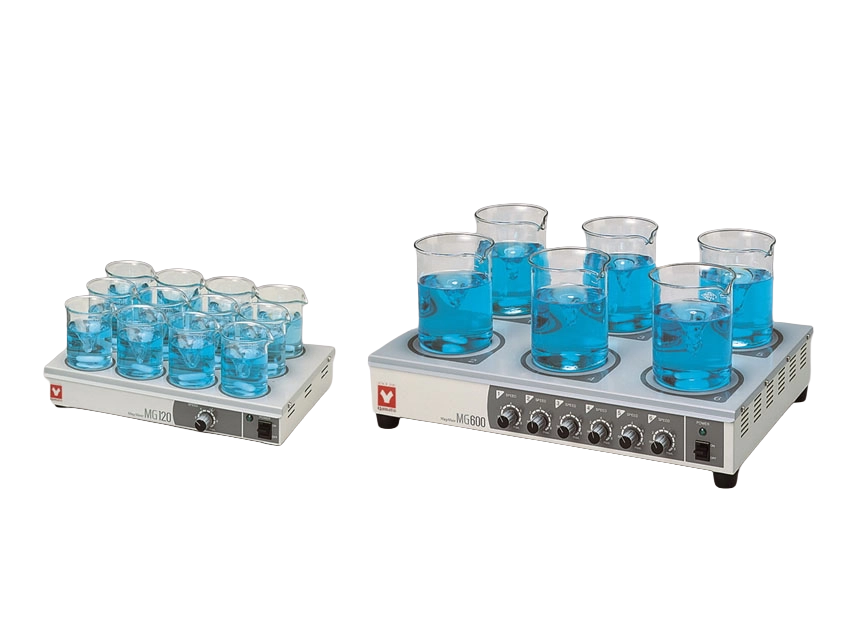

MG Series
The MG Series is a magnetic stirrer line designed for simultaneous multi-position stirring, featuring a stainless steel stage with ceramic coating.
Manufacturer: Yamato — Japan
Overview
The MG Series is a magnetic stirrer line designed for simultaneous multi-position stirring, featuring a stainless steel stage with ceramic coating. The MG120 stirs up to 12 vessels of 50-100mL each simultaneously via 12 independent DC motors, while the MG600 offers a larger footprint for greater capacity; the two models differ in external dimensions and weight.
Compact Multi-Position Design
Compact size with a stainless steel plate finished with ceramic coating.
Simultaneous Stirring
Designed for simultaneous stirring of multiple samples.
Common Specifications
| Specification | MG Series |
|---|---|
| Stage material | Stainless steel plate with ceramic coating |
| Stirring capacity | 50~100mL×12 (Max.) |
| Revolution | Approx. 100~1,500rpm |
| Motor | DC Motor x 12pcs simultaneous electronic control |
| Power Source | AC115V/AC220V Single-phase with step-down transformer |
Model Comparison
| Specification | MG120 | MG600 |
|---|---|---|
| External dimensions (W×D×H mm) | 303×234×55mm | 456×335×90mm |
| Weight | 4kg | 7.5kg |
