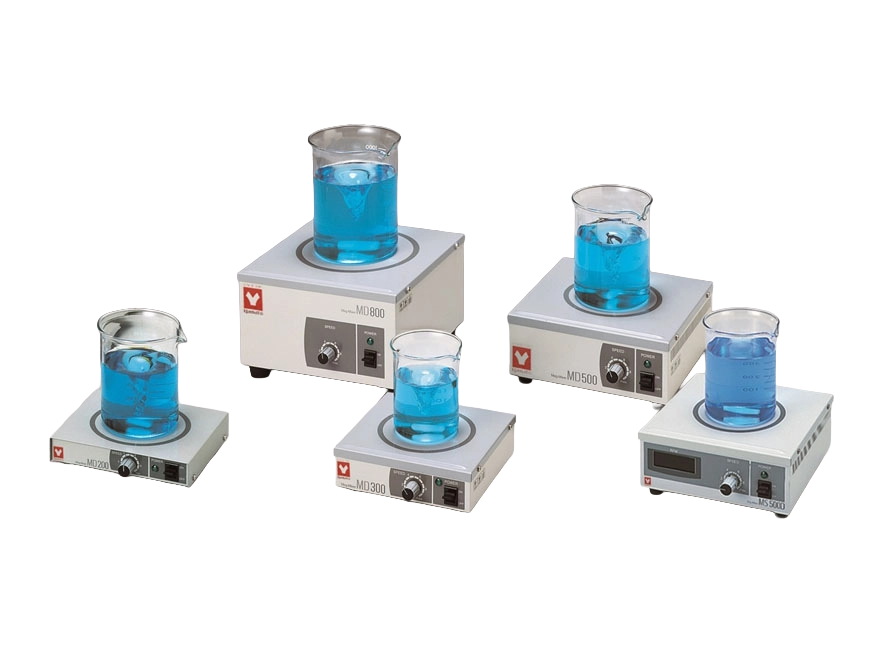

MD/MS Series
The MD/MS Series is a compact ultra-thin magnetic stirrer line that uses a stronger magnetic field for efficient stirring. Powered by DC motor electronic control, the series spans five models — MD200, MD300, MD500, MD800, and MS500D — that differ in external dimensions and weight to accommodate different stirring capacities.
Manufacturer: Yamato — Japan
Overview
The MD/MS Series is a compact ultra-thin magnetic stirrer line that uses a stronger magnetic field for efficient stirring. Powered by DC motor electronic control, the series spans five models — MD200, MD300, MD500, MD800, and MS500D — that differ in external dimensions and weight to accommodate different stirring capacities.
Ultra-Thin Compact Design
Compact, ultra thin type.
Stronger Magnetic Stirring
Efficient stirring by the stronger magnetic field.
Common Specifications
| Specification | MD/MS Series |
|---|---|
| Stage material | Stainless steel plate with ceramic coating |
| Stage size | W164×D145mm |
| Stirring capacity | 50~2,000ml |
| Revolution | Approx. 80~1,500rpm |
| Motor | DC motor electron control |
| Power Source | AC115V/AC220V Single phase with step-down transformer |
Model Comparison
| Specification | MD200 | MD300 | MD500 | MD800 | MS500D |
|---|---|---|---|---|---|
| External dimensions (W×D×H mm) | 172×163×37mm | 174×180×59mm | 199×225×89mm | 224×263×142mm | 196×200×81mm |
| Weight | 0.9kg | 1.4kg | 2.2kg | 3.2kg | 2.2kg |
