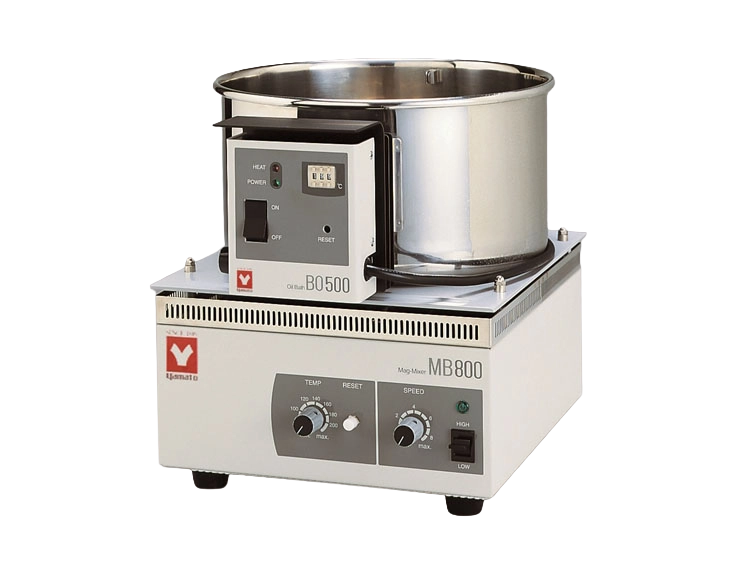

Magnetic Stirrer (MB800)
The MB800 is a magnetic stirrer equipped with an optimum heat prevention function for oil bath use, featuring a chemical-proof, anodized aluminum top plate suitable for the BO 500 type oil bath.
Manufacturer: Yamato — Japan
Overview
The MB800 is a magnetic stirrer equipped with an optimum heat prevention function for oil bath use, featuring a chemical-proof, anodized aluminum top plate suitable for the BO 500 type oil bath. A safety function cuts power to the oil bath outlet when the bath's bottom temperature reaches a specified value, protecting against overheating.
Oil Bath Compatibility
Suitable for oil bath BO 500 type; top plate is chemical-proof, anodized aluminum finish.
Overtemperature Protection
Safety function to prevent overtemperature; the power supply to the outlet for oil bath can be cut off and stopped when the temperature of the bottom of the oil bath reaches the specified value.
Common Specifications
| Specification | Magnetic Stirrer (MB800) |
|---|---|
| Stirring plate material | Aluminum |
| Stirring plate dimensions | W250×D270mm |
| Stirring capacity | 100 to 10,000ml |
| Revolution | 70 to 1,200rpm |
| Motor | AC motor, electronic control |
| Overheat preventor | 70 to 200℃ |
| Sensor | Thermistor type |
| Safety device | Preventor for oil bath power shut down, Electric leakage breaker |
| External dimensions (W×D×H mm) | 250×270×150mm |
| Power Source | AC220V Single-phase with step-down transformer |
| Weight | 4.2kg |
